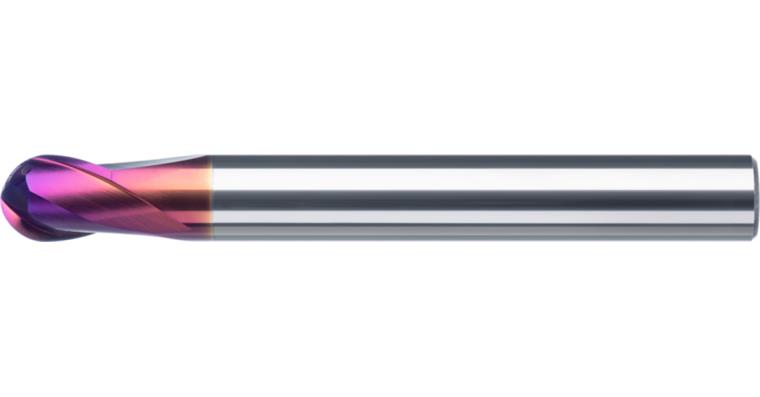

ATORN SC radius cutter TiAlSiN 2x2.5x65 mm clearance 1.95x4.5 mm

ATORN SC radius cutter TiAlSiN 2x2.5x65 mm clearance 1.95x4.5 mm

ATORN SC radius cutter TiAlSiN 2x2.5x65 mm clearance 1.95x4.5 mm
Item no: 1016792 112

Online price:

Still in stock: 6

Application
Radius milling cutter, standard design, for machining materials up to 65 HRC, e.g. in dip cutting and mould construction.

Execution
  • Cutting material, Ultra Micro fine grain
  • cutting edge finish
  • HA shaft in line with DIN 6535
  • Clearance
  • type H
  • With RockTec PRO coating
  • Radius tolerance = +/- 0.005 mm

Advantage
  • optimum chip removal and temperature resistance
  • Optimised geometry for machining hard materials
  • maximum service life thanks to RockTec PRO coating


Brand: ATORN
Cutting material: SC
Surface: RockTec PRO
Type: H
Number of cutting edges (Z): 2 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 2 mm
Cutting edge length: 2,5 mm
Clearance length: 4,5 mm
Length: 65 mm
Clearance diameter: 1,95 mm
Shank diameter: 6 mm
fz hard 65 HRC: 0,019 mm

ATORN-No.: 11264083

EAN no.: 4050293653120

Product Datasheet Datasheet cutting values
