ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M4

ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M4

ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, long, M4
Item no: 1014325 202

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions
  • h6 uniform shank for clamping in shrink-fit chucks
  • HSSE PM cutting material for longer service life


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 125,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 0,7 mm
Twist angle: 45° (right)
Shank diameter: 4,50 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,30 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 3,40 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487145

EAN no.: 4050293650075

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE HL, 6HX, 0 degrees, form B, left M4
  •
    ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M3
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E left-cutting M4
  •
    ATORN screw tap HSSE V3 vaporised B 0° MF6 x 0.5 ISO2 3xD CNC UNI
    27,95 €
  • Innenmessgerät CITO3P 80-120 mm mit Hartmetallmessbolzen
    589,85 €
  • 1/2 inch internal TX® impact screwdriver bit CV special steel size T 30
    15,85 €
  • 1 inch hexagon impact screwdriver bit CV special steel short AF 22 mm
    28,80 €
  • SIMPLEX soft-face hammer impact inserts nylon and soft metal dia. 40 mm
  •
    RIDGID cast iron one-handed pipe wrench, 2"
    95,72 €
  • COF mounting rail 750x38x20 mm
  •
    COF hook type A 50x20
  •

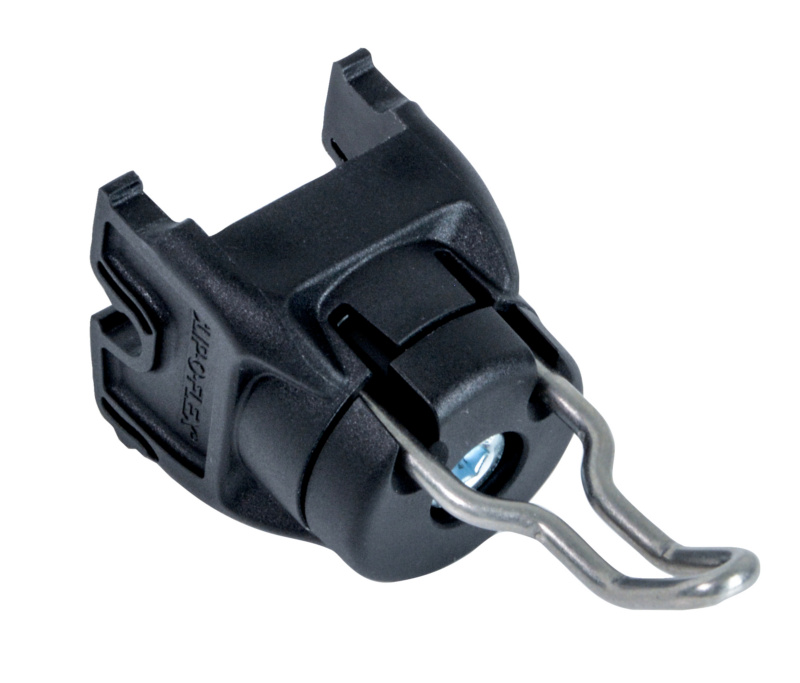

    CLIP-O-FLEX Akku-Schrauberhalter passend für COF Halteschiene
