ATORN machine tap HSSE HL, 6H+0.1, 0 degrees, form B, M24

ATORN machine tap HSSE HL, 6H+0.1, 0 degrees, form B, M24

ATORN machine tap HSSE HL, 6H+0.1, 0 degrees, form B, M24
Item no: 1014324 114

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M24
Tolerance of screw taps (Tol.): 6H+0.1
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 160,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 3 mm
Twist angle: 0°
DIN: 376
Shank diameter: 18 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 21,00 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 14,50 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487100

EAN no.: 4050293649628

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €
  • Long twist drill bit DIN 340 type FS HSS ground 2.3 mm
  •
    Long twist drill bit DIN 340 type FS HSS ground 3.0 mm
  •

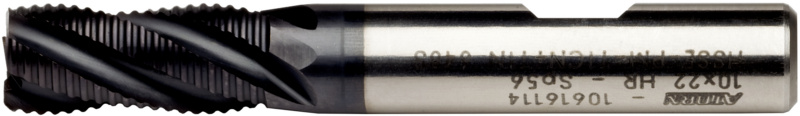

    ATORN end mill PM TiAlN D844B K, diameter 14.0 mm
  •
