ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M20

ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M20

ATORN machine tap HSSE HL, 6GX, 45 degrees, form C, M20
Item no: 1014322 214

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC machines or conventional machines in blind holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • Ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M20
Tolerance of screw taps (Tol.): ISO 3X (6GX)
Hole type: Blind hole ≤ 2.5xD
Lead angle shape: C
Length: 140,00 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 2,5 mm
Twist angle: 45° (right)
DIN: 376
Shank diameter: 16 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 17,50 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 12 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487053

EAN no.: 4050293649154

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE PM HL, 6HX, 0 degrees, form B, H6 M16
  •
    TWIST DR BIT DIN1897 D10.5MM HSS-E/ALCRN
  •
    TWIST DR BIT DIN1897 D15.0MM HSS-E/ALCRN
  •
    ATORN countersink, 90°, HSS, T=3, extra long, 5.8 x 104 mm
  •
    Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M12
  •
    Through hole screw tap M DIN 376 shape B 1.5xD HSS-E M16
  •
    ATORN machine tap HSSE VA, 6HX, 0 degrees, form B, M2
    30,36 €
  • Blind hole screw tap M DIN 371 15° shape C 1.5xD HSS-E M3
  •
    Blind hole screw tap M DIN 376 15° shape C 1.5xD HSS-E M6
  •
    Through hole screw tap Hyper Z VA 0° HSS-E DIN 371 shape B 6H M5
  •

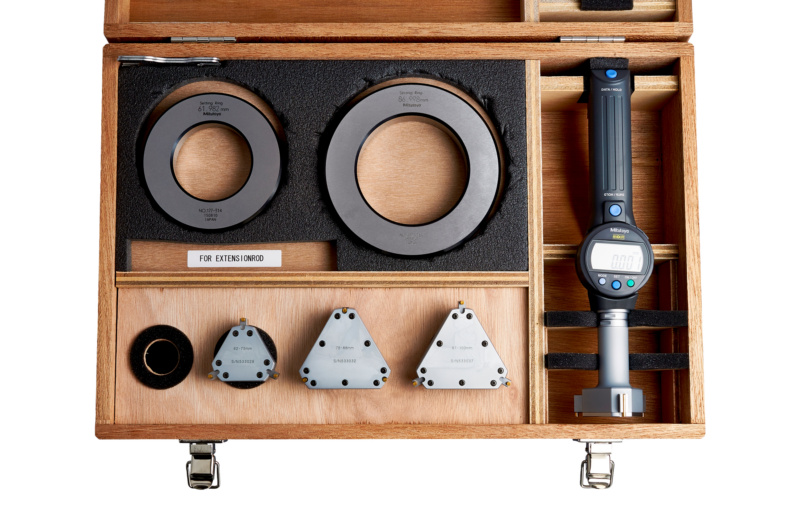

    Digitaler Borematic Messschraubensatz 50-100 mm mit 4 Wechselköpfen
  •
