Digitaler Borematic Messschraubensatz 50-100 mm mit 4 Wechselköpfen

Digitaler Borematic Messschraubensatz 50-100 mm mit 4 Wechselköpfen

Digitaler Borematic Messschraubensatz 50-100 mm mit 4 Wechselköpfen
Item no: 1031129 204

Online price:

Still in stock: 1

Application
For measuring through-bores and short pilots in series production.

Execution
  • Spring mechanism for quick and easy measurements
  • Titanium-coated measuring pins offer outstanding durability and impact resistance
  • Display unit can be rotated 330° to simplifying reading at any angle
  • Funktionen: ON/OFF, ABS / INC (INC ZERO), Funktionssperre, DATA (Ausgabe mit Kabel) / HOLD (Anzeigewert), 2 x PRESET, Datenausgang, GO/±NG Bewertung
  • Functions: ON/OFF, ABS/INC (INC ZERO), function lock, DATA (output with cable)/HOLD (display value), 2 x PRESET, data output, GO/±NG evaluation

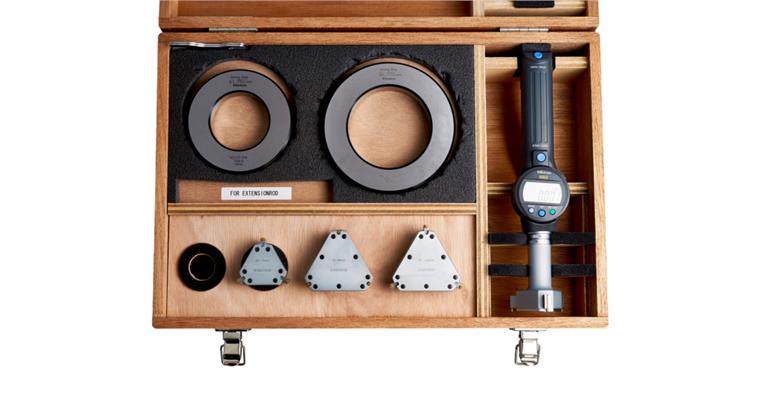

Delivery
1x box
1x wrench
1x SR-44 battery
Adjustment rings
Factory test certificate (basic devices only, no certificate is supplied for adjustment rings)


Brand: MITUTOYO
Min./max. length measuring range: 50-100 mm
Composition of set: 50-63 mm | 62-75mm | 75-88 mm | 87-100 mm | Einstellring 62 mm | 87 mm
Digit increment: 0,001 mm
Error limit: 0,006 mm
Number of measurement heads: 4 PCS
Number of setting rings: 2 PCS
Digit height: 11 mm
Interface: Digimatic | USB 2.0 type A | Integrated Wireless
Data transmission type: Cable | Wireless
Other standard: Company standard
Calibration Group: I | AC

Manufacturer part no.: 568-927

EAN no.: 4946368636740
