Through hole screw tap M DIN 371 shape B 1.5xD HSS-E M3

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E M3

Through hole screw tap M DIN 371 shape B 1.5xD HSS-E M3
Item no: 1014302 108

Online price:

Available for immediate delivery

Application
Metric thread
Through holes
Max. drilling depth 1.5xD
Steels up to 700 N/mm2

Execution
  • Spiral point
  • M1.2 tolerance field ISO 1 (4H)


Brand: LIZZARD
Material to be processed: Steel
Thread type x nominal diameter: M3
Max. thread depth: 1.5xD
Thread dimension: M3
Pitch: 0,5 mm
Cutting material: HSSE
Surface: Uncoated
Hole type: Clearance hole ≤ 2xD
Tolerance of screw taps (Tol.): 6H
Lead angle shape: B
Length: 56 mm
Cutting edge length: 11 mm
Core hole diameter: 2,50 mm
Shank diameter: 3,5 mm
Shank square: 2,7 mm
Thread type: Metric thread
Twist angle: 0°
DIN: 371
Coolant supply: External
Nominal diameter: 3 mm
Shank style: Cylindrical with square drive
Cutting direction: Right-hand cutting

Versions
loading
Keywords:

[Text nicht gefunden]

  • Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M4
    20,28 €
  • Through hole screw tap M DIN 371 shape B 1.5xD HSS-E-OX M 6
  •
    ATORN machine tap HSSE VA, 6HX, 0 degrees, form B, M4
    18,06 €
  • Through hole screw tap M uni DIN 371 shape C 2.5xD PM-TiCN M5
  •
    ATORN screw tap HSSE-PM ULTRA HL form B DIN 376 0° M4 ISO2
  •
    Through hole screw tap UNF DIN 376 shape B 3xD HSS-E 1/2 inch
  •
    Through hole screw tap UNF DIN 376 shape B 3xD HSS-E 3/4 inch
  •
    Deep-grip screw clamp, clamping width x overhang 400x200 mm
  •
    Deep-grip screw clamp, clamping width x overhang 400x250 mm
  •

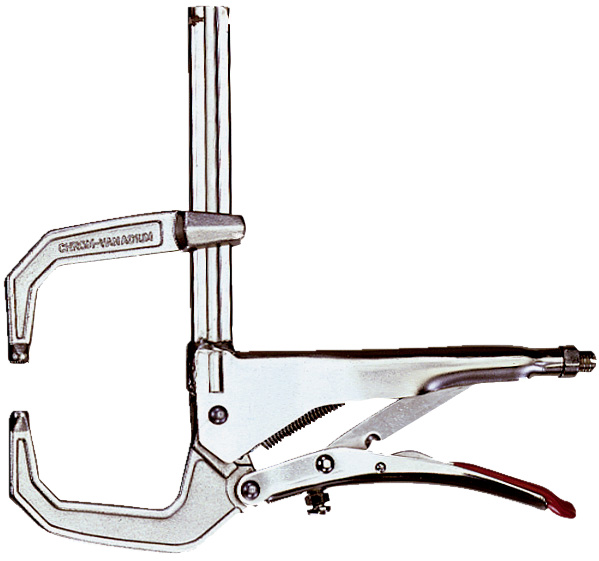

    C-Grip universal holding pliers AF up to 110 mm overhang 80 mm
  •
