ATORN machine tap HSSE VA, 6HX, 0 degrees, form B, M4

ATORN machine tap HSSE VA, 6HX, 0 degrees, form B, M4

ATORN machine tap HSSE VA, 6HX, 0 degrees, form B, M4
Item no: 1014327 104

Online price:

Available in 6-8 working days.

Application
For producing metric threads on CNC or conventional machines in through holes, in stainless steel and Steel

Advantage
  • Ideal for long service life requirements for steel and stainless steel
  • Innovative cutting geometry ensures high process reliability in stainless steel


Brand: ATORN
Material to be processed: Stainless steel
Thread type: Metric thread
Thread type x nominal diameter: M4
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 63,00 mm
Cutting material: HSSE
Surface: Vaporised
Pitch: 0,7 mm
Twist angle: 0°
DIN: 371
Shank diameter: 4,50 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 3,30 mm
Type: M MAX Speed
Coolant supply: External
Shank square: 3,40 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 2
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10487276

EAN no.: 4050293651386

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN machine tap HSSE HL, 6HX, 45 degrees, form C, M39
  •

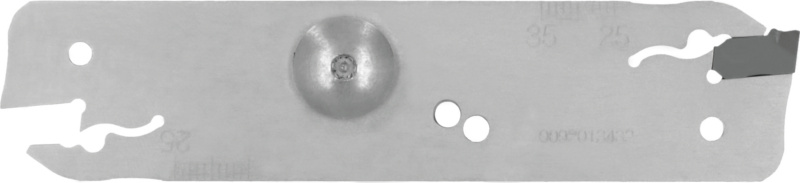

    ATORN cut-off and grooving blade ABE-R 32-ASS02-C with internal cooling
    192,70 €
  • ATORN cut-off and grooving blade ABE-N 32-ASS03-C with internal cooling
    102,46 €
  • ATORN 3-way pyramid, incl. Easy Point, body height 92 mm
  •
    ATORN INOX callipers 150 mm with torque clamping
  •

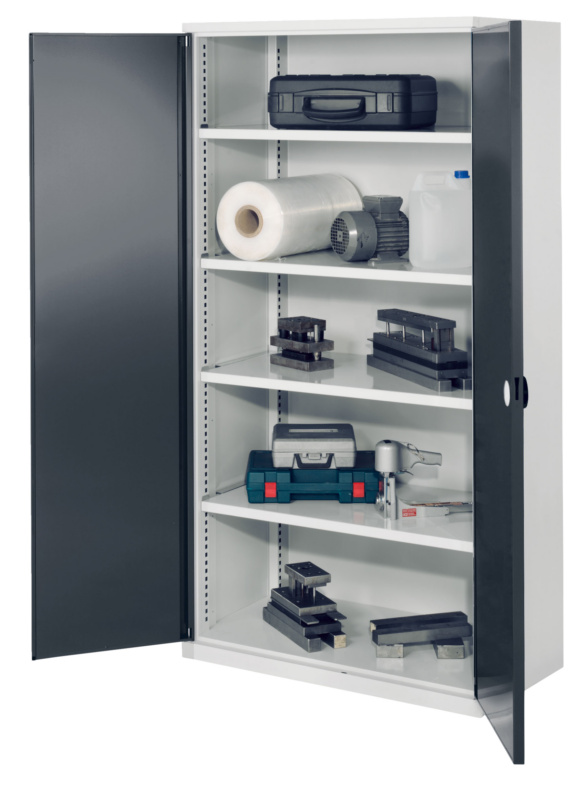

    Heavy-duty cab. H1950xW1000xD600mm 4 shelves with sld sh metal doors 7035/7016
  •

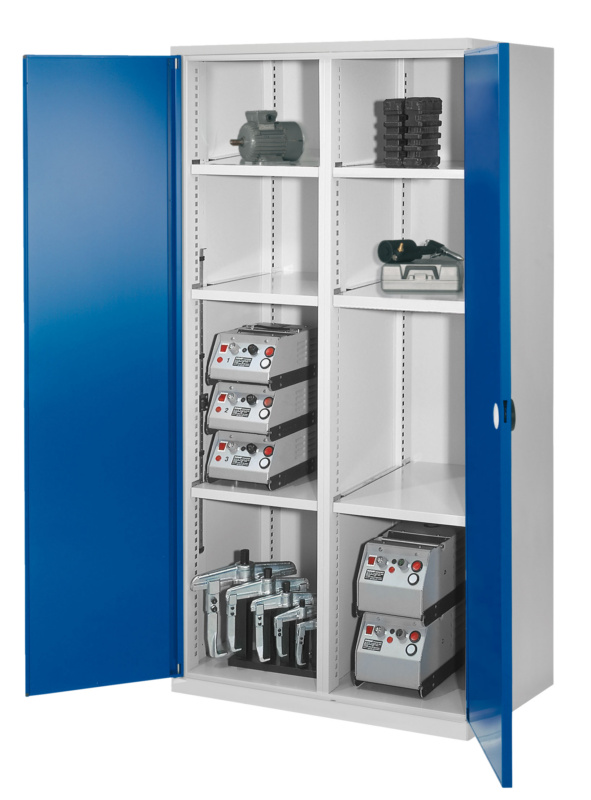

    Heavy-duty cab. H1950xW1000xD600mm 4 shelves with sld sh metal doors 7035/5010
  •

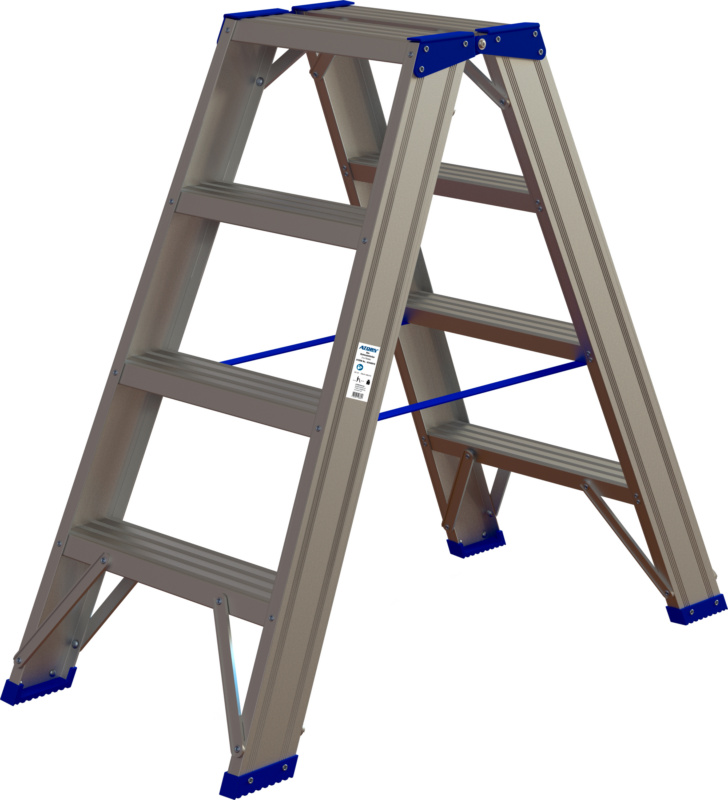

    ATORN aluminium step ladder 2x 4 steps on both sides 85 mm deep steps
  •
