ATORN NC reamer HSSE T=6 D 7-8° 2.51mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 2.51mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 2.51mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212
Item no: 1013503 122

Online price:

Available in 5-7 working days.

Application
for producing fit tolerances in through holes (tolerance=0/+0.003 mm) on NC machines or conventional machines up to 1000 N/mm².

Execution
7-8° left-hand spiral, type D, with centring hole and offset shank

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Tolerance of fit: 0 / +0,003 mm
Groove type: Left-hand twist, 7-8°
Tool holding device: HA parallel shank
Surface: Uncoated
Cutting edge diameter: 2,51 mm
Length: 57 mm
Cutting edge length: 14 mm
Projecting length: 29 mm
Shank diameter: 3 mm
Number of cutting edges: 6 PCS
f steel 1000: 0,1 mm/r
DIN: 212 similar

ATORN-No.: 10048031

EAN no.: 4050293380934

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

You might also be interested in this

  • ATORN NC reamer HSSE T=6 D 7-8° 3.01mm 0-0.003mm x 61mm x 15mm HA sim to DIN 212
  •
    ATORN NC reamer HSSE T=6 D 7-8° 9.0mm 0-0.003mm x 125mm x 36mm HA sim to DIN 212
  •
    ATORN NC reamer HSSE T=4 B 7-8° 2.02mm 0-0.003mm x 49mm x 11mm HA DIN 212
  •
    ATORN NC reamer HSSE T=4 B 7-8° 1.49 mm 0-0.003 mm x 40 mm x 8 mm HA DIN 212
  •
    ATORN NC reamer SC T=6 B 7-8° 3.02mm 0-0.003mm x 61mm x 15mm HA DIN 8093
  •
    ATORN NC reamer HSSE T=4 B 7-8° 1.97mm 0-0.003mm x 49mm x 11mm HA DIN 212
  •
    ATORN NC reamer HSSE T=6 D 7-8° 2.47mm 0-0.003mm x 57mm x 14mm HA sim to DIN 212
  •
    ATORN NC reamer HSSE T=4 B 7-8° 1.99mm 0-0.003mm x 49mm x 11mm HA DIN 212
  •
    ATORN NC reamer HSSE T=6 D 7-8° 3.98mm 0-0.003mm x 75mm x 19mm HA sim to DIN 212
  •
    RASTERPLAN tool tower stationary 1100x700x700mm 7035/7016
  •

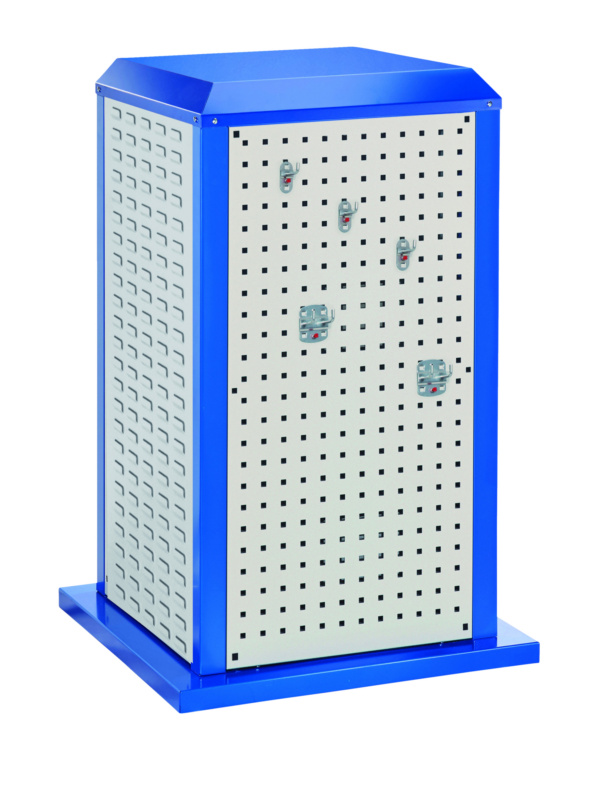

    RASTERPLAN tool tower stationary 1100x700x700mm 7035/5010
  •
