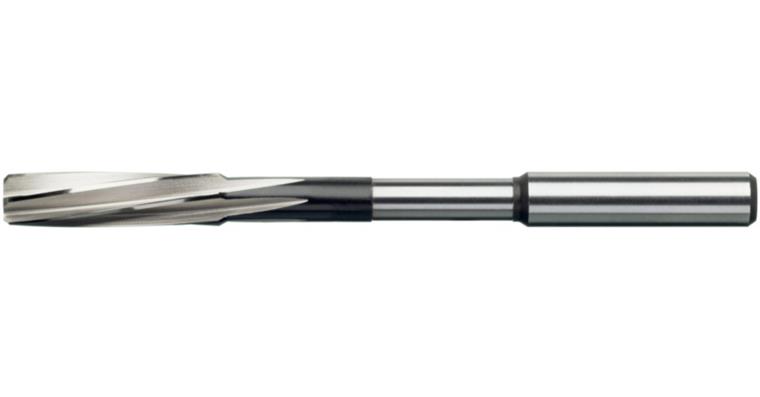

ATORN NC reamer HSSE T=6 D 7-8° 10.0mm H7 x 133mm x 38mm HA DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 10.0mm H7 x 133mm x 38mm HA DIN 212

ATORN NC reamer HSSE T=6 D 7-8° 10.0mm H7 x 133mm x 38mm HA DIN 212
Item no: 1013490 290

Online price:

Available for immediate delivery

Application
for cutting H7 fit tolerances in through holes and blind holes on NC machines or conventional machines up to 1000 N/mm².

Execution
7-8° left-hand spiral, type D, with centring hole and offset shank

Advantage
good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSSE
Tolerance of fit: H7
Groove type: Left-hand twist, 7-8°
Tool holding device: HA parallel shank
Surface: Uncoated
Cutting edge diameter: 10 mm
Length: 133 mm
Cutting edge length: 38 mm
Projecting length: 93 mm
Shank diameter: 10 mm
Number of cutting edges: 6 PCS
f steel 1000: 0,15 mm/r
DIN: 212

ATORN-No.: 10048755

EAN no.: 4050293006148

Product Datasheet Datasheet cutting values
