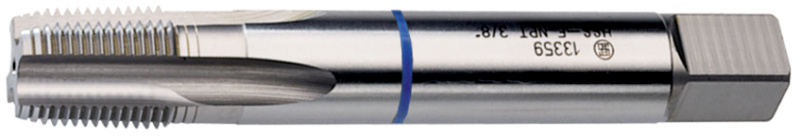

ATORN screw tap HSSE C DIN 371 15° NPT 1/2 in ISO2 TH/BH tapered CNC P

ATORN screw tap HSSE C DIN 371 15° NPT 1/2 in ISO2 TH/BH tapered CNC P

ATORN screw tap HSSE C DIN 371 15° NPT 1/2 in ISO2 TH/BH tapered CNC P
Item no: 1003141 402

Online price:

Available in 4-6 working days.

Application
For manufacturing NPT (National Pipe Taper) on CNC or conventional machines in the steel, NF metal and (cast) material groups up to a strength of 1000 N/mm².

Execution
With protruding shank

Advantage
  • Innovative cutting geometry for very high dimensional accuracy, process reliability and chip removal.
  • High-quality, torsion-resistant HSSE cutting material and cutting edge finish for very high service life requirements.
  • Universal use for maximum flexibility in use.


Brand: ATORN
Thread type: National pipe tapered thread
Thread type x nominal diameter in inches: NPT 1/2 in
Tolerance of screw taps (Tol.): ISO 2 (6H)
Number of thread starts per inch: 14
Hole type: Clearance/blind hole, tapered
Lead angle shape: C
Length: 80 mm
Cutting material: HSSE
Surface: Uncoated
Twist angle: 15° (right)
DIN: 371 similar
Shank diameter: 16 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 17,75 mm
Type: P MAX 1000 Control
Coolant supply: External
Shank square: 12 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 2
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10471044

EAN no.: 4050293020670

Product Datasheet Datasheet cutting values
