ATORN screw tap HSSE B DIN 371 0° UNC 12 in 24 2B D 3xD CNC P

ATORN screw tap HSSE B DIN 371 0° UNC 12 in 24 2B D 3xD CNC P

ATORN screw tap HSSE B DIN 371 0° UNC 12 in 24 2B D 3xD CNC P
Item no: 1003141 369

Online price:

Available in 4-6 working days.

Application
For producing UNC (Unified Coarse) threads on CNC machines or conventional machines in through holes in the steel, (stainless steel), non-ferrous metals and (cast iron) material groups up to a strength of 1000 N/mm².

Execution
With transition-fit shank

Advantage
Long service life and high process reliability thanks to innovative cutting geometry, and universal use for maximum flexibility in use.


Brand: ATORN
Thread type: UNC
Thread type x nominal diameter in inches: UNC 12 in
Tolerance of screw taps (Tol.): 2B
Number of thread starts per inch: 24
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE
Surface: Vaporised
Twist angle: 0°
DIN: 371 similar
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 4,5 mm
Type: P MAX 1000
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 3
Cutting speed (cast) suitability (ISO K): 2
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10483004

EAN no.: 4050293581522

Product Datasheet Datasheet cutting values
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN hand tap MS HSS D 352 0° M10 1.5 mm ISO2 D/S 3xD
  •
    ATORN screw tap HSSE C 374 40° MF4 0.5 mm ISO2 S 2.5xD CNC P
  •
    ATORN solid carbide twist drill bit TiALN type N 5xD 8.9 mm x 125 mm 118°
  •
    ATORN solid carbide twist drill bit TiAlN type N 3xD 10.5 mm x 89 mm 118°
  •
    Blind hole screw tap M DIN 371 40° shape C 2.5xD HSS-E M4
  •
    Blind hole screw tap UNF DIN 2184-1 40° shape C 2.5xD HSS-E 5/8 inch
  •
    ATORN solid carbide end mill T3 HB, 6.0 x 16 x 21 x 57 mm, plain with KF
  •
    ATORN SC mini end mill, diameter 0.9 x 1.8 x 40 mm T=2 RT65
  •

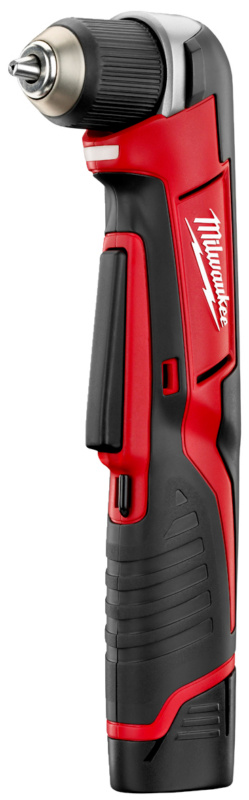

    Red Li-ion C12 RAD cordless angle drill 12.0 V/2.0 Ah 12 Nm
  •
