ATORN hand tap MS HSSE D 352 0° M2 0.4 mm ISO2 D/S 3xD VA

ATORN hand tap MS HSSE D 352 0° M2 0.4 mm ISO2 D/S 3xD VA

ATORN hand tap MS HSSE D 352 0° M2 0.4 mm ISO2 D/S 3xD VA
Item no: 1003140 083

Online price:

Available in 4-6 working days.

Application
For producing metric threads by hand in through holes and blind holes, in (steel), stainless steel, (cast iron) and special alloys material groups up to a strength of 1300 N/mm² in single-part production.

Execution

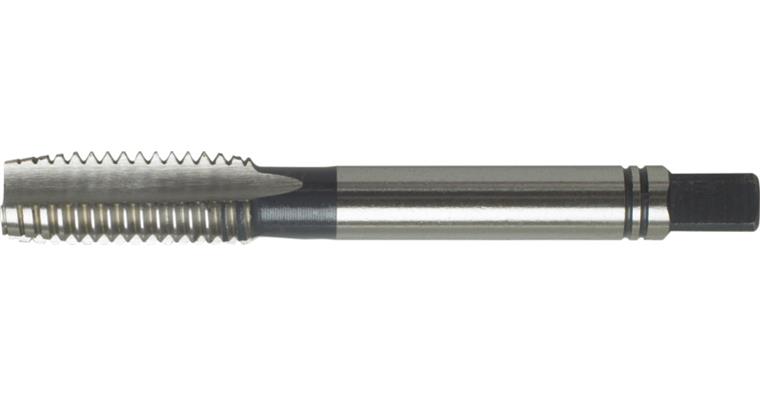

Second tap with notch shape D with two rings

Advantage
Long service life and process reliability through innovative cutting geometry in machining stainless steel and special alloys


Brand: ATORN
Material to be processed: Stainless steel
Design: Second tap
Type: VA MAX
Thread type: Metric thread
Thread type x nominal diameter: M2
Lead angle shape: D
Pitch: 0,4 mm
Cutting material: HSS
Shank diameter: 2,8 mm
Hole type: Clearance/blind hole ≤ 3xD
Shank square: 2,1 mm
Surface: Uncoated
Tolerance of screw taps: ISO 2 (6H)
Core hole diameter: 1,6 mm
Length: 36 mm
Cutting speed (steel 1000) suitability (Eignung Stahl 1000 N/mm2): 3
Cutting speed (steel 1300) suitability (Eignung Stahl 1300 N/mm2): 3
Overall stainless steel suitability (Eignung Edelstahl ): 1
fitness not iron total (Eignung NE-Metalle): 3
Cutting speed (cast) suitability (Eignung Guss): 3
fitness Titan/Nickel/Super total (Eignung Sonderlegierung): 3
fitness stainless steel total (Eignung Hartbearbeitung): 3
DIN: 352

ATORN-No.: 10479343

EAN no.: 4050293187984

Product Datasheet
