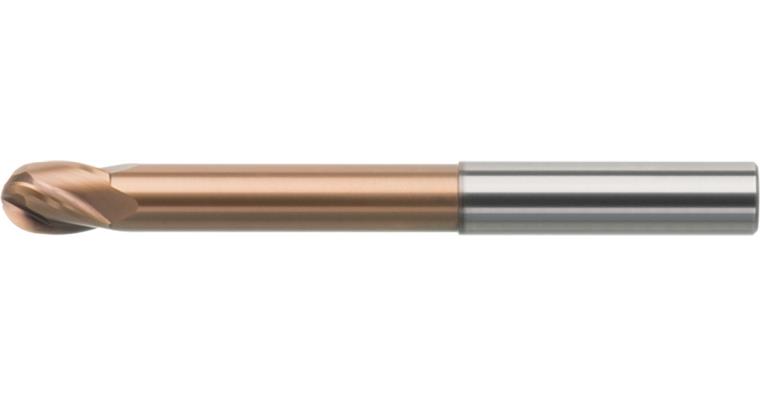

ATORN SC radius cutter diameter 3.0 x 5 x 21 x 75 mm T=4 RT65

ATORN SC radius cutter diameter 3.0 x 5 x 21 x 75 mm T=4 RT65

ATORN SC radius cutter diameter 3.0 x 5 x 21 x 75 mm T=4 RT65
Item no: 1016831 303

Online price:

Still in stock: 3

Application
Radius milling cutter, long design, for machining materials up to 65 HRC, e.g. in dip cutting and mould construction.

Execution
  • Solid carbide ultra-fine grain
  • Cutting edge finish
  • HA shank in accordance with DIN 6535
  • With clearance
  • Type H
  • Chip angle -10°
  • RockTec 65-coated
  • Radius tolerance = 0/-0.010 mm

Advantage
  • Excellent chip removal and temperature resistance
  • Maximum service life thanks to RockTec 65 coating


Brand: ATORN
Cutting material: SC
Surface: RockTec 65
Type: H
Number of cutting edges (Z): 4 PCS
Twist angle: 30°
Tool holding device: HA parallel shank
Construction length: Long
Cutting edge diameter: 3 mm
Cutting edge length: 5 mm
Clearance length: 21 mm
Length: 75 mm
Clearance diameter: 2,8 mm
Shank diameter: 6 mm
fz hard 65 HRC: 0,02 mm

ATORN-No.: 11860741

EAN no.: 4050293321227

Product Datasheet
