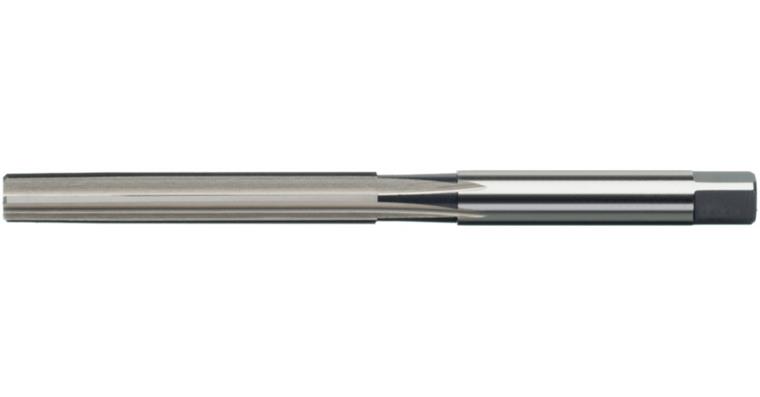

ATORN HSS hand reamer, H7, A, 0°, 8.0mm x 115mm, T=6, DIN 206

ATORN HSS hand reamer, H7, A, 0°, 8.0mm x 115mm, T=6, DIN 206

ATORN HSS hand reamer, H7, A, 0°, 8.0mm x 115mm, T=6, DIN 206
Item no: 1003130 008

Online price:

Available in 5-7 working days.

Application
For cutting H7 fit tolerances manually in the blind hole up to 1000 N/mm².

Execution
7-8° left-hand spiral, uneven pitch and long notch shape

Advantage
Good bore hole quality (dimensional tolerance, roundness, surface quality)


Brand: ATORN
Material to be processed: Universal use
Cutting material: HSS
Tolerance of fit: H7
Groove type: Straight
Surface: Uncoated
Cutting edge diameter: 8 mm
Length: 115 mm
Cutting edge length: 58 mm
Number of cutting edges: 6 PCS
Shank square: 6,2 mm
Form: A

ATORN-No.: 10040085

EAN no.: 4050293004076

Product Datasheet
