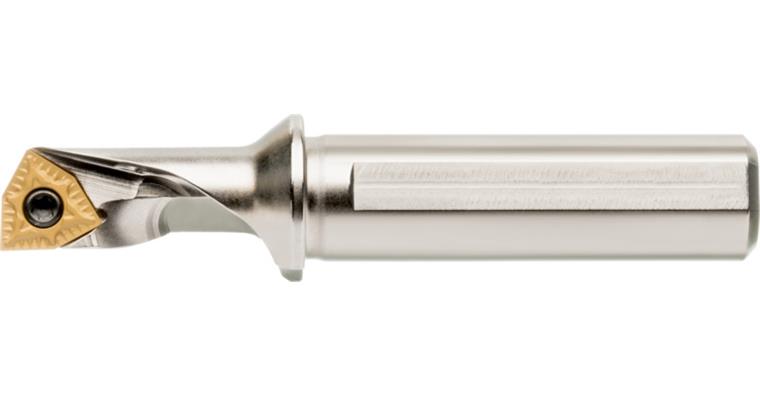

ATORN holder PTL10-2.25xD size 05

ATORN holder PTL10-2.25xD size 05

ATORN holder PTL10-2.25xD size 05
Item no: 1018476 329

Online price:

Available in 5-7 working days.

Application
For face and longitudinal turning, drilling, countersinking and chamfering.

Execution
precision-made steel holder, bronzed, with internal cooling

Advantage
  • Tool cost minimisation: One tool for 5 types of machining
  • Process-time optimisation: up to 30% changeover time reduction

Notes
Use for internal cooling drilling work.

Brand: ATORN
Min. bore diameter (D min.): 10 mm
Max. drilling depth (D): 2.25xD
Tolerance of hole diameter: 0-0.22 mm
Projecting length (l1): 28 mm
Shaft length (l2): 42 mm
Shank diameter (d1): 12 mm
Collar diameter (d2): 16 mm
Suitable for indexable inserts: WCHX 05T1..

ATORN-No.: 12230261

EAN no.: 4050293427271

Product Datasheet
