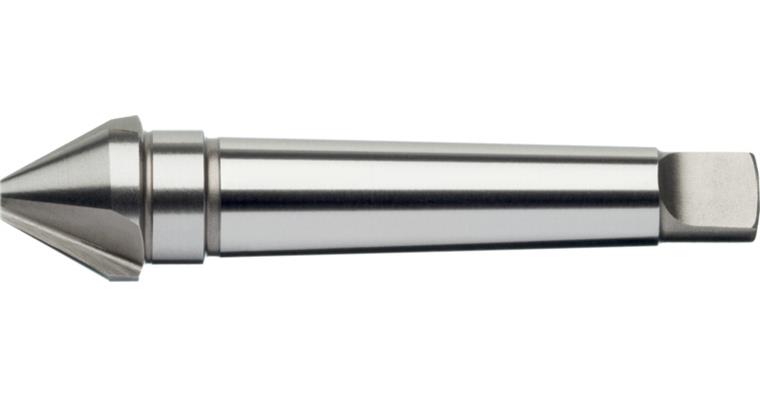

ATORN countersink, 60°, HSS, T=3, 63.0 x 190 mm, DIN 334 shape D MK 4

ATORN countersink, 60°, HSS, T=3, 63.0 x 190 mm, DIN 334 shape D MK 4

ATORN countersink, 60°, HSS, T=3, 63.0 x 190 mm, DIN 334 shape D MK 4
Item no: 1003120 045

Online price:

Available in 4-6 working days.

Application
For producing 60° counterbores up to 1000 N/mm².

Execution
profile-ground triple-edge countersink with radial relief

Advantage
radial relief ensures optimum chip breaking

Notes
The grooves are milled from diameter of 40

Brand: ATORN
Material to be processed: Universal use
Countersink angle: 60 Degree
Cutting material: HSS
Surface: Uncoated
Number of cutting edges: 3 PCS
Tool holding device: Morse taper shank
Spot-facer diameter: 63,0 mm
Tip diameter: 20,0 mm
Length: 190 mm
Morse taper size: MK 4
f steel 700: 0,33 mm/r
DIN: 334

ATORN-No.: 12030012

EAN no.: 4050293344622

Product Datasheet Datasheet cutting values
