Haz. mat. shelves f. small cont., basic bay, 4 levels, 1x30 l, 1060x635x2000mm

Haz. mat. shelves f. small cont., basic bay, 4 levels, 1x30 l, 1060x635x2000mm

Haz. mat. shelves f. small cont., basic bay, 4 levels, 1x30 l, 1060x635x2000mm
Item no: 1085614 401

Online price:

Availability on demand

Application
For storing flammable liquids. Can be expanded as desired thanks to the design of the basic rack and add-on rack.

Execution
  • All shelf parts, tray shelves and grating floors are zinc-plated
  • Collection trays in accordance with WHG (German water resources act), test mark in accordance with StawaR (German steel tank guideline)
  • Storage levels height adjustable in increments of 25 mm
  • Load capacity of each storage level 200 kg with evenly distributed load
  • Bay load max. 1200 kg
  • Stable construction thanks to reinforcement cross beams

Advantage
2 shelf widths (1000 and 1300 mm) can be combined for optimal use of the available storage space

Delivery
Delivered disassembled for easy self-assembly.


Brand: LACONT
Design: Shelving unit
Height: 2000 mm
Width: 1060 mm
Depth: 635 mm
Collection volume: 30 l
Number of shelving unit: 1 PCS
Number of grating bases: 3 PCS
Number of tray bases: 1 PCS
Load-carrying capacity per level: 200 kg
For liquids hazardous to water GHS 1-4: Yes
For flammable liquids GHS 1-3: Yes
Declaration of conformity in acc. with StawaR: Yes
Material: Sheet steel
Surface: Zinc plated
Bay load: 1200 kg
Grid dimension: 25 mm
Height x width x depth: 2000 x 1060 x 635 mm

Manufacturer part no.: R71-2190-D

EAN no.: 4024496127436

Product Datasheet
Additional articles

Please select a button.

Required accessories
Versions
loading
Keywords:

You might also be interested in this

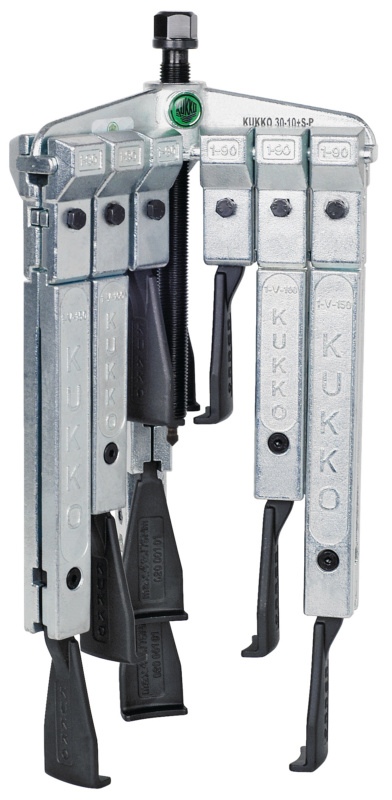

  • Triple leg puller set, clamping width 120 mm clamping depth 100, 200 and 250 mm
  •
