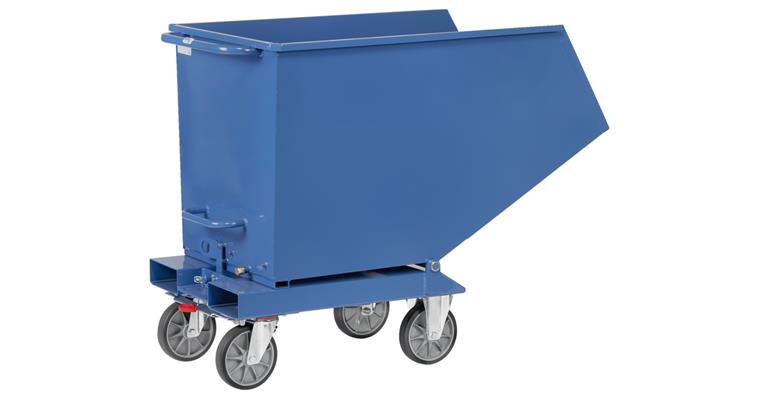

Dumper capacity 600 litres RAL 5007 load capacity 750 kg 1458x855x1099 mm

Dumper capacity 600 litres RAL 5007 load capacity 750 kg 1458x855x1099 mm

Dumper capacity 600 litres RAL 5007 load capacity 750 kg 1458x855x1099 mm
Video
Item no: 1085581 103

Online price:

Availability on demand

Application
Mobile and for forklift operation.

Execution
  • Tilting trough made of 2 mm thick sheet steel
  • Upper edge folded over twice
  • Hopper edge folded over twice
  • Welded oil-tight
  • Drain valve with sieve for separating liquids and solids
  • Base made of 3 mm thick edge profiles with integrated forklift pockets
  • Treadplate and anti-tilt function
  • Tubular push handle
  • TOTALSTOP - Central braking system as standard on the swivel castors in accordance with European standard EN 1757-3 (safety of platform trolleys)
  • Wheels: 2 swivel castors and 2 fixed castors, TPE tyres 200x40 mm (art. no. 1085581 104+108 elastic solid rubber tires 200x50 mm, blue-grey trackless), hubs with deep groove ball bearings

Advantage
  • Drain valve and TOTALSTOP central braking system as standard
  • with floor-level emptying option

Notes
Tilting is triggered manually. We recommend a tilting container (art. no. 1085581 301-305, 85582 101-102, 85594 101-104) or a self-tilting system (art. no. 1085591 099-105) for emptying using a forklift or with heavy loads.

Brand: FETRA
Volume: 600 l
Load-carrying capacity: 750 kg
Tipper edge height: 843 mm
Internal length x internal width x internal height: 1321 x 794 x 735 mm
Length x width x height: 1458 x 855 x 1099 mm
Fork pocket clearance (Einfahr-Taschen Abstand (A)): 327 mm
Fork pocket width (Einfahr-Tasche Breite (B)): 194 mm
Fork pocket height (Einfahr-Tasche Höhe (C)): 72 mm
With stacker seat tilt function: No
With perforated sheet: Yes
With drain valve: Yes
With wheel lock: Totalstop
Number of wheels: 4 PCS
Oil and watertight: Yes
Surface: Powder-coated
Colour: Brilliant blue RAL 5007
Weight: 96 kg

Manufacturer part no.: 4703A

EAN no.: 4017976147031
