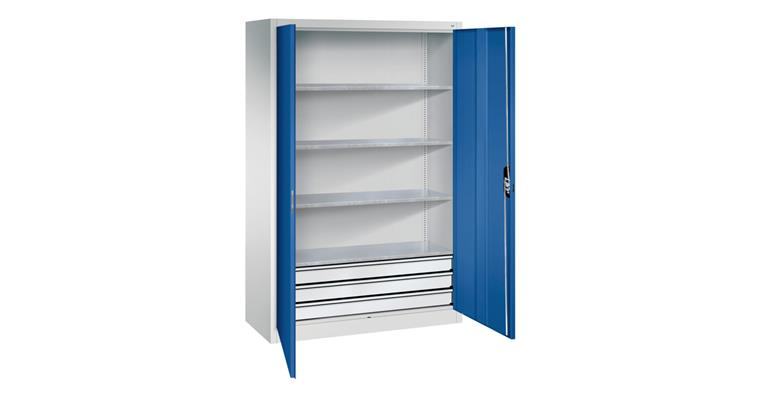

Large tool cabinet 1950X1200X500 RAL7035/5010, drawers, bottom

Large tool cabinet 1950X1200X500 RAL7035/5010, drawers, bottom

Large tool cabinet 1950X1200X500 RAL7035/5010, drawers, bottom
Item no: 1085128 103

Online price:

Availability on demand

Execution
  • 3 drawers with telescopic rail guide, fully extendable and 50 kg load/drawer
  • Bottom drawer block
  • 3 zinc-plated shelves
  • High load capacity per shelf: 70 kg (up to 110 kg in reinforced design)
  • Highly flexible interior fittings due to adjustment in increments of 15 mm
  • Door suspension with external hinges, approx. 180° opening angle
  • Central door reinforcement for high door strength
  • Attractive appearance thanks to recessed Ergo Lock handle (three-bolt lock) in black with 2 keys

Advantage
  • Wide range of different dimensions suitable for various applications
  • Cabinets with 400, 500 and 600 mm depth
  • Ergo Lock recessed handle lock, wear resistant and user friendly

Delivery
unverpackt, ohne Palette

Notes
Bolt to wall if drawers contain heavy loads.
For additional shelves and drawer compartments, see art. no. 1085131.

Brand: C+P
Depth: 500 mm
Width: 1200 mm
Number of shelves: 3 PCS
Height: 1950 mm
Door design: Double wing doors
Shelf width: 1195 mm
Shelf depth: 452 mm
Load-carrying capacity per shelf: 70 kg
Number of drawers: 3 PCS
Drawer front height: 3 x 100 mm
Drawer width (inner dimension): 1000 mm
Drawer depth (inner dimension): 440 mm
Load-carrying capacity per drawer: 50 kg
Pullout type: Full extension
With partition wall: No
Central locking: Yes
Lock type: Ergo-Lock recessed handle lock
Material: Sheet steel
Colour of front: Gentian blue RAL 5010
Surface: Powder-coated
Cabinet colour: Light grey RAL 7035

Manufacturer part no.: 8931-503|S10422

EAN no.: 4064615116538

Product Datasheet
