Drawer cabinet C-line 700x575x1020 mm RAL 5010 7 drawers

Drawer cabinet C-line 700x575x1020 mm RAL 5010 7 drawers

Drawer cabinet C-line 700x575x1020 mm RAL 5010 7 drawers
Item no: 1084486 102

Online price:

Availability on demand

Execution
  • Drawer cabinet with 7 drawers
  • Reinforced frame, very sturdy housing
  • Drawers with smooth sidewalls
  • Drawers with 100 % full-extension slide with self-closing mechanism 80 kg (with front height 50 mm - 30 kg)
  • Secure central locking
  • Increased tilt safety, only one drawer can be opened at a time
  • Fittings can be inserted later on
  • Plastic handle strips and trim panels are mounted on site during labelling

Notes
For individual divider assortments, see art. no. 1084488 101-103.

Brand: ---
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Height: 1020 mm
Width: 700 mm
Depth: 575 mm
Number of drawers: 7 PCS
Pullout type: Full extension
With single pull-out safety brake: Yes
With SOFT-CLOSE closing function: No
Central locking: Yes
Material: Sheet steel
Surface: Powder-coated
Drawer width (inner dimension): 600 mm
Drawer depth (inner dimension): 450 mm

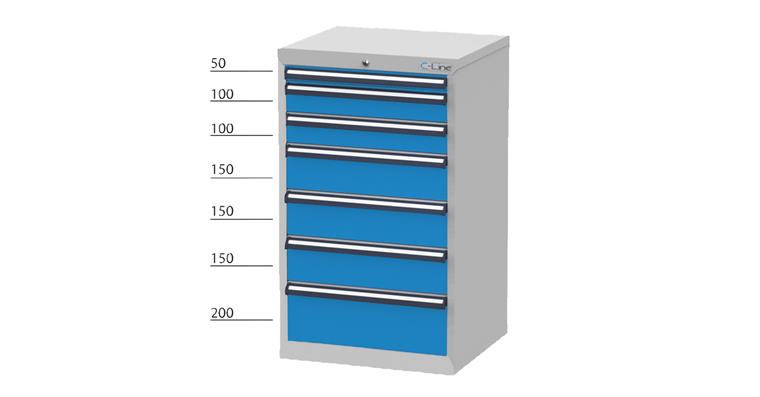

Drawer design: 3 drawers, W 600 x D 450 x H 150 mm, 80 kg load capacity | 1 drawer, W 600 x D 450 x H 200 mm, 80 kg load capacity | 2 drawers, W 600 x D 450 x H 100 mm, 80 kg load capacity | 1 drawer, W 600 x D 450 x H 50 mm, 30 kg load capacity
Drawer with slots: Yes
Perforated drawer base: No
Lock type: Cylinder lock

EAN no.: 4024496122219

Product Datasheet
