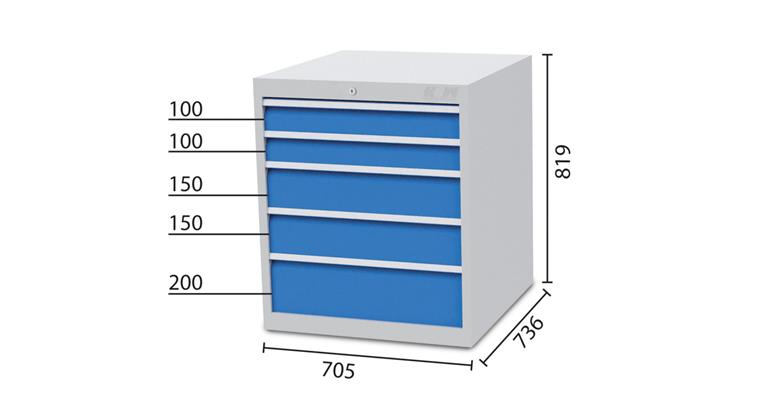

Drawer cabinet 5 drawers 7035/5012 2x100, 2x150, 1x200mm 705x736x819mm

Drawer cabinet 5 drawers 7035/5012 2x100, 2x150, 1x200mm 705x736x819mm

Drawer cabinet 5 drawers 7035/5012 2x100, 2x150, 1x200mm 705x736x819mm
Item no: 1084320 111

Online price:

Availability on demand

Execution
  • Welded sheet steel construction
  • Powder-coated housing, zinc-plated drawers
  • Central locking
  • Drawer panel height 50 mm: Load capacity: 70 kg
  • Drawer panel height from 75 mm: Load capacity: 100 kg
  • Drawer guides are ball-bearing-mounted, single drawer lock
  • Individual drawer locking possible
  • Handle strips with inserted labelling strips

Notes
Load values apply to evenly distributed loads.
For drawer fitting assortments, see art. no. 1084326-1084377.
For accessories, see art. no. 1084370-1084385.
For cabinet housing, see art. no. 1084410.
For drawers, see art. no. 1084416-1084418.

Brand: BEDRUNKA HIRTH
Cabinet colour: Light grey RAL 7035
Colour of front: Light blue RAL 5012
Height: 819 mm
Width: 705 mm
Depth: 736 mm
Number of drawers: 5 PCS
Pullout type: Full extension
With single pull-out safety brake: Yes
With SOFT-CLOSE closing function: No
Central locking: Yes
Material: Sheet steel
Surface: Powder-coated
Drawer width (inner dimension): 600 mm
Drawer depth (inner dimension): 600 mm
Drawer design: 2 drawers, W 600 x D 600 x H 100 mm, 100 kg load capacity | 2 drawers, W 600 x D 600 x H 150 mm, 100 kg load capacity | 1 drawer, W 600 x D 600 x H 200 mm, 100 kg load capacity
Drawer with slots: Yes
Perforated drawer base: No
Lock type: Cylinder lock

Manufacturer part no.: 780/0221V10 7035/5012

EAN no.: 4024496118939
