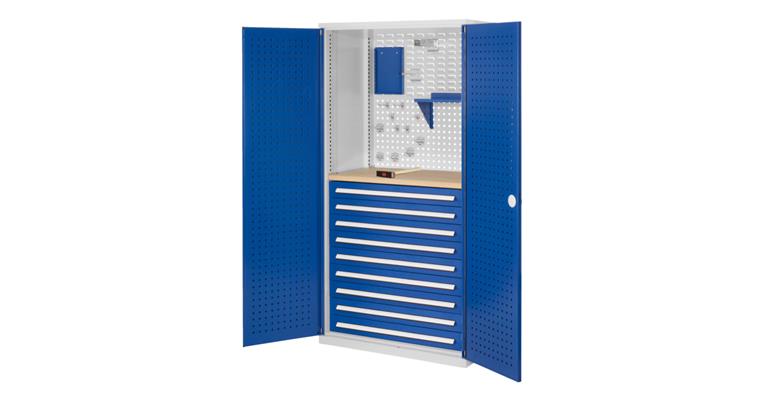

Cabinet with perforated panel door, MOD.7, 7035/5010

Cabinet with perforated panel door, MOD.7, 7035/5010

Cabinet with perforated panel door, MOD.7, 7035/5010
Item no: 1082555 304

Online price:

Availability on demand

Application
RasterPlan drawer cabinets for professional, practical storage and organisation of high-quality tools and materials.

Execution
  • Individually equipped with drawers (100 mm panel height) and integrated worktop or multiplex workbench top panels (30 mm thick)
  • Robust sheet steel construction
  • Impact-resistant and scratch-resistant plastic coating
  • Back panel with RasterPlan system perforation or embossed slots
  • Smooth fronts due to flush overlay doors, opening angle of over 200°
  • Continuous rod guides
  • Double-walled reinforced doors
  • Telescopically guided drawers with full-extension slides, can also be retrofitted on request
  • Zinc-plated shelves, adjustable in increments of 25 mm
  • Three-pin cylinder safety lock

Notes
Wall or floor anchoring is recommended.
For additional drawers, shelves and workbench top panels, see art. no. 1082556 301-609.

Brand: KAPPES
Depth: 600 mm
Width: 1000 mm
Number of shelves: 0 PCS
Height: 1950 mm
Door design: Perforated boards
Load-carrying capacity per shelf: 80 kg
Number of drawers: 9 PCS
Drawer front height: 9 x 100 mm
Drawer width (inner dimension): 895 mm
Drawer depth (inner dimension): 484 mm
Load-carrying capacity per drawer: 110 kg
Pullout type: Full extension
With partition wall: No
Central locking: Yes
Lock type: Turning bolt lock
Material: Sheet steel
Colour of front: Gentian blue RAL 5010
Surface: Powder-coated
Cabinet colour: Light grey RAL 7035
Material of shelf: Wood

Manufacturer part no.: 1460.07.3016

EAN no.: 4251142217399

Product Datasheet
