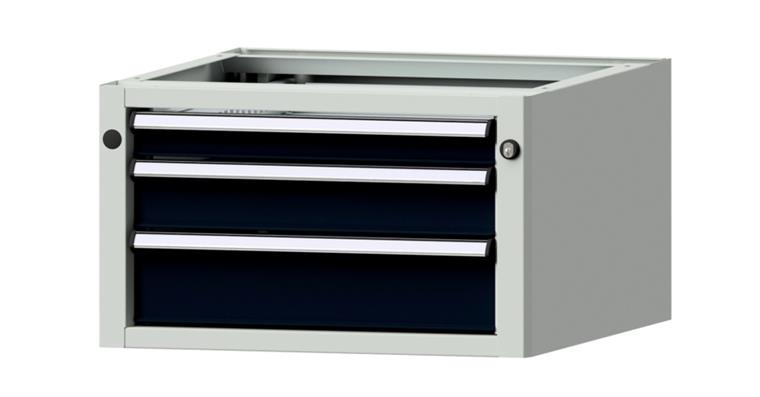

Undercounter cabinet model 905 V WxDxH 570x615x330 mm RAL 7035/7016

Undercounter cabinet model 905 V WxDxH 570x615x330 mm RAL 7035/7016

Undercounter cabinet model 905 V WxDxH 570x615x330 mm RAL 7035/7016
Item no: 1082253 602

Online price:

Availability on demand

Execution
  • Housing in robust welded sheet steel construction
  • Useful height of housing 270 mm (= clear internal dimension)
  • Drawers as standard with 100 % full-extension slide
  • Single extension lock
  • Drawer internal dimensions W x D 500 x 540 mm
  • Drawer load capacity 100 kg
  • High-quality aluminium handle strip with labelling strips
  • Central locking: DOM interchangeable cylinder
  • Lock is master-key-compatible
  • Powder-coated surface

Advantage
When creating locking systems, the standard locking core can simply be replaced with a locking-system-compatible locking core

Notes
To order customised hard foam inserts, please use the following clear internal dimensions: W x D 490 mm x 530 mm. Load values always apply to evenly distributed surface loads. Other colours available on request at extra cost.

Brand: ANKE
Load-carrying capacity per drawer: 100 kg
Number of drawers: 3 PCS
Width: 570 mm
Depth: 615 mm
Drawer front height: 1 x 50 mm | 1 x 90 mm | 1 x 120 mm
Height: 330 mm
Pullout type: Full extension
Drawer width (inner dimension): 500 mm
Drawer depth (inner dimension): 540 mm
With single pull-out safety brake: Yes
With doors: No
Drawer with slots: Yes
Perforated drawer base: No
Central locking: Yes
Lock type: DOM® cylinder lock
Material: Sheet steel
Cabinet colour: Light grey RAL 7035
Colour of front: Anthracite grey RAL 7016
Surface: Powder-coated
Cover height: 50/120 mm

Manufacturer part no.: 999.098.0347

EAN no.: 4014641209193

Product Datasheet
