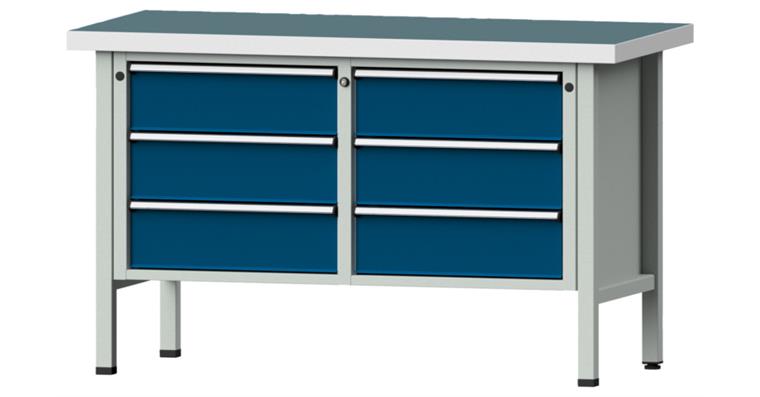

Cabinet workbench model 108 V universal plate height 900 mm RAL 7035/5010

Cabinet workbench model 108 V universal plate height 900 mm RAL 7035/5010

Cabinet workbench model 108 V universal plate height 900 mm RAL 7035/5010
Item no: 1082075 415

Online price:

Availability on demand

Execution
  • Worktop: solid beech (BMP), universal (UBP) or sheet steel (ZBP)
  • Housing in robust welded sheet steel construction
  • Useful height of housing 540 mm (= clear internal dimension)
  • Base frames made from square steel tube 45x45x2 mm, 1x with level compensation
  • High-quality aluminium handle strip with labelling tabs
  • Central locking: DOM interchangeable cylinder
  • Lock is master-key-compatible
  • When creating locking systems, the standard locking core can simply be replaced with a locking-system-compatible locking core
  • Other colours available on request for a surcharge

Advantage
  • Worktop in solid beech (BMP): Oiled surface, can be repeatedly sanded down, extremely long service life, robust and highly resilient thanks to special and unique strip bonding: Strips interlocked and bonded lengthways with approximately 60 % greater glue surface to ensure optimum cross-bracing and load values
  • Universal worktop (UBP) with ABS edge: Abrasion-resistant and anti-static surface, short-term resistance to weak acids and alkalis and exposure to heat up to approx. 250°C
  • Worktop with zinc-plated sheet steel surface (ZBP): Sheet metal thickness 1.5 mm, easy-care and therefore ideal for working with oiling, hot-dip galvanised, corrosion-resistant for long periods, sheet steel is flanged around the edges on all sides
  • TÜV/GS tested

Delivery
Anlieferung fertig montiert

Notes
To order customised hard foam inserts, please use the following clear internal dimensions: WxD 490 mm x 530 mm. Load values always apply to evenly distributed surface loads.

Brand: ANKE
Material of worktop: Universal covering
Working height: 900 mm
Load-carrying capacity: 1500 kg
Plate width: 1500 mm
Plate depth: 700 mm
Plate thickness: 50 mm
Number of drawers: 6 PCS
Drawer front height: 6 x 180 mm
Drawer width (inner dimension): 500 mm
Drawer depth (inner dimension): 540 mm
Drawer surface: 0,27 m²
Load-carrying capacity per drawer: 100 kg
Pullout type: Full extension
With single pull-out safety brake: Yes
Lock type: DOM® locking system
Central locking: Yes
On castors: No
Levelling: Yes
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Surface: Powder-coated

Manufacturer part no.: 108V

EAN no.: 4014641002961

Product Datasheet
Additional articles

Please select a button.

Accessories
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN screw tap HSSE-PM TiN B 376 50° M12 1.75 mm ISO2 S 2.5xD CNC
  •
    Digital dial gauge measuring range 12.5 mm reading 0.005 mm IP 52
  •
    Folding trolley steel tube loading surface 1,200 x 800 mm load 600 kg RAL5007
  •
    Cabinet workbench model 120 V universal plate height 850 mm RAL 7035/7016
  •
    Cabinet workbench model 282 V universal plate height 850 mm RAL 7035/7016
    2.299,95 €
  • Cabinet workbench model 282 V universal plate height 900 mm RAL 7035/7016
  •
    Cabinet workbench model 341 V universal plate height 850 mm RAL 7035/7016
  •
    Cabinet workbench model 341 V plate w/ sh. st. coat. height 850 mm RAL 7035/7016
  •
    Cabinet workbench model 223 V universal plate height 900 mm RAL 7035/7016
  •

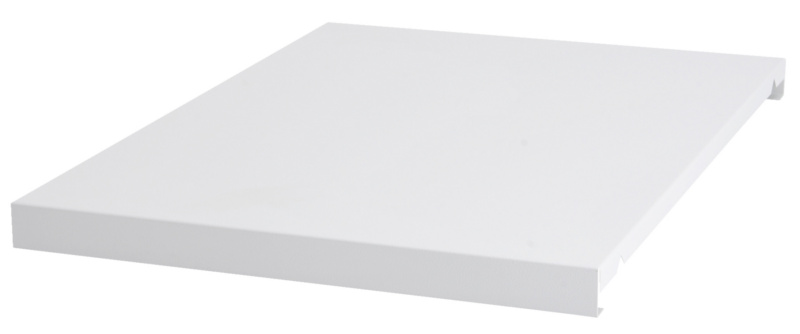

    Shelf 925x443 mm RAL 7035 light grey for cabinet 980 mm wide
  •
