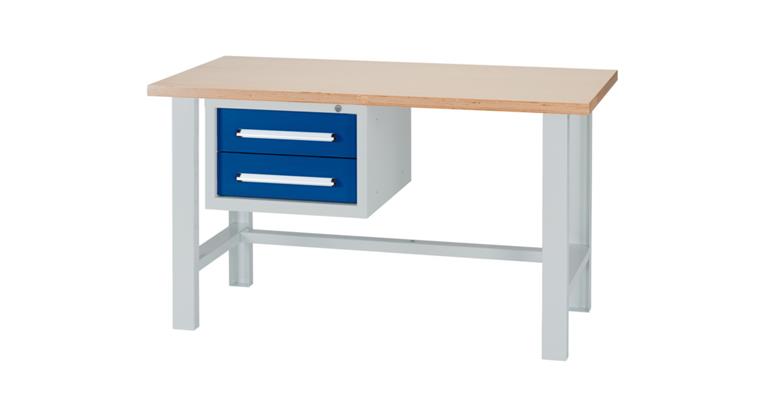

Combination workbench series DB W1500xD750xH840mm RAL7035/5010 2xdrawer

Combination workbench series DB W1500xD750xH840mm RAL7035/5010 2xdrawer

Combination workbench series DB W1500xD750xH840mm RAL7035/5010 2xdrawer
Item no: 1082003 122

Online price:

Availability on demand

Execution
  • Welded sheet steel construction, high load capacity and good stability
  • Drawers with approx. 85 % partial extension and rows of slots for inserting dividers
  • Aluminium handle strips with labelling strips with transparent covers and cover caps
  • Beech multiplex worktop 38 mm thick, chamfered and coated with clear varnish, water-resistant and oil-resistant
  • Surfaces sanded on both sides, all edges bevelled at 45° angle
  • Clear internal drawer dimensions: W437 x D505 mm


Brand: DRINGENBERG
Material of worktop: Multiplex beech
Working height: 840 mm
Load-carrying capacity: 800 kg
Plate width: 1500 mm
Plate depth: 750 mm
Plate thickness: 40 mm
Number of drawers: 2 PCS
Drawer front height: 2 x 150 mm
Drawer width (inner dimension): 437 mm
Drawer depth (inner dimension): 513 mm
Load-carrying capacity per drawer: 100 kg
Pullout type: Partial extension, 85% roller bearings
With single pull-out safety brake: No
Lock type: Cylinder lock
Central locking: Yes
Adjustable in height: No
Levelling: No
Cabinet colour: Light grey RAL 7035
Colour of front: Gentian blue RAL 5010
Material of base frame: Steel plate
Surface: Powder-coated

Manufacturer part no.: 033436-7035-5010
