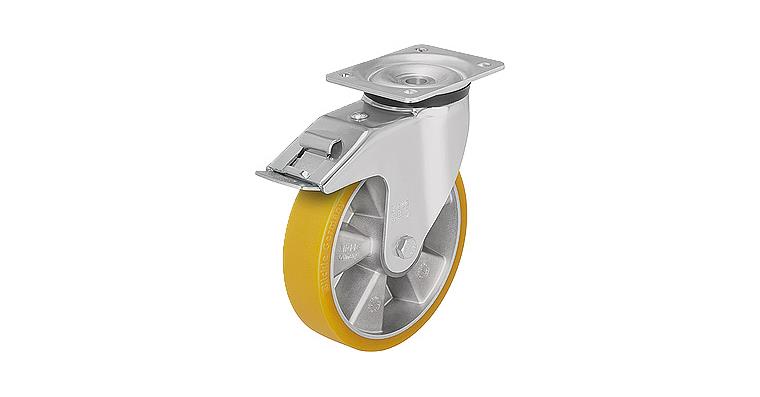

Sheet steel swivel castor w/ screw-on plate and locking device PU dia. 160 mm

Sheet steel swivel castor w/ screw-on plate and locking device PU dia. 160 mm

Sheet steel swivel castor w/ screw-on plate and locking device PU dia. 160 mm
Item no: 1081405 103

Online price:

Available in 8-10 working days.

Execution
  • Heavy-duty design
  • Screw-on plate
  • stop-fix locking device
  • Wheel made of high-quality, reaction-cast polyurethane elastomer Blickle Extrathane®
  • Wheel body made of die-cast aluminium
  • Cast wheel tread
  • Housing pressed from strong sheet steel
  • Twin ball bearings in swivel head, swivel head seal
  • Bolted wheel axle
  • Galvanised, blue passivated, Cr6-free

Advantage
  • Castor: - Very high abrasion resistance, high cut and tear resistance, very good chemical bond to the wheel body
  • Minimum swivel head play and smooth rolling characteristic due to the special dynamic Blickle riveting process of the swivel head and increased service life thanks to work-hardened ball race grooves


Brand: BLICKLE
Roll width: 50 mm
Roll diameter: 160 mm
Plate size: 140 x 110 mm
Load-carrying capacity: 550 kg
Overall height: 202 mm
With wheel lock: Yes
Design of the rolls: Swivel castor
Material of roller: Polyurethane
Plate length: 140 mm
Plate width: 110 mm

Manufacturer part no.: LK-ALTH 160K-FI

EAN no.: 4024496113965

Product Datasheet
