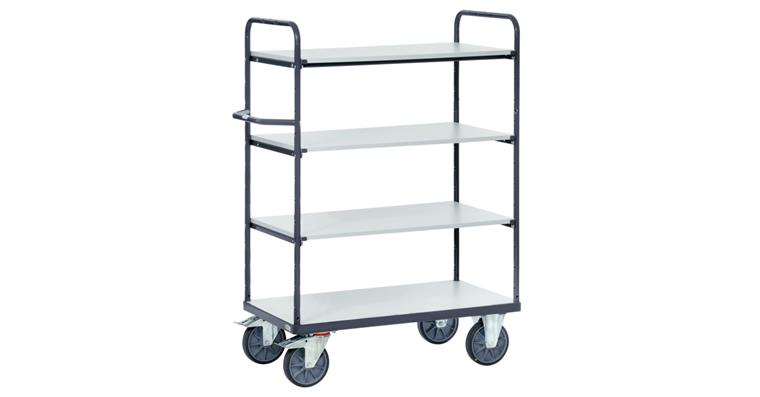

ESD shelf trolley load surf. size 850X500 mm load capacity 500 kg 4 shelves

ESD shelf trolley load surf. size 850X500 mm load capacity 500 kg 4 shelves

ESD shelf trolley load surf. size 850X500 mm load capacity 500 kg 4 shelves
Item no: 1081309 101

Online price:

Availability on demand

Execution
  • Welded steel tube and profile steel, electrically conductive, powder-coated
  • Screw and plug construction
  • 1 fixed and 3 loose shelves made of electrically conductive wooden plate according to DIN 68765, light grey
  • 2 swivel castors and 2 fixed castors, wheels with TPE-ESD tyres (thermoplastic elastomer), electrically conductive
  • Hubs with precision deep-groove ball bearings
  • Swivel castors with locking devices according to European standard EN 1757-3 (safety of platform trolleys)

Advantage
  • The highest level of comfort: very low starting, rolling and swivelling resistance
  • Quiet movement over level surfaces
  • Tyres are non-marking (trackless)


Brand: FETRA
Loading surface size: 850 x 500 mm
Number of loading surfaces: 4 PCS
Loading surface height: 269 mm | 669 mm | 1069 mm | 1469 mm
Material of loading surface: Wood, electroconductive
Load-carrying capacity: 500 kg
Load-carrying capacity of loading surfaces: 50 kg
Length: 1019 mm
Width: 509 mm
Height: 1511 mm
Number of panels: 2 PCS
Material of wall: Strut brace
Grid dimension of upper ends: 100 mm
Number of fixed rollers: 2 PCS
Number of steering rollers: 2 PCS
With wheel lock: Yes
Total stop optional: Yes
Wheel diameter: 160 mm
Material of wheel: TPE-ESD
Design: ESD-capable | With strut braces on front sides
With handle: Yes
Lock type: 0 - not applicable
Colour: Slate grey RAL 7015
Surface: Powder-coated
EN standard: 1757-3

Manufacturer part no.: 9200

EAN no.: 4017976092003

Product Datasheet
