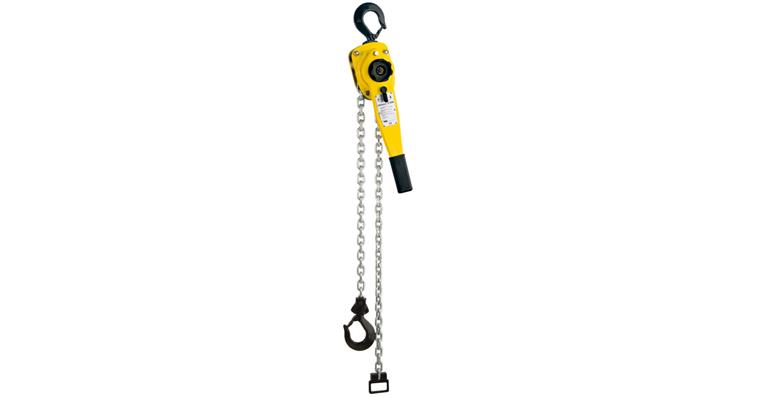

Multi-purpose lever hoist device UNOplus, rnd stl ch. sh/stl lift 1.5m ld 750kg

Multi-purpose lever hoist device UNOplus, rnd stl ch. sh/stl lift 1.5m ld 750kg

Multi-purpose lever hoist device UNOplus, rnd stl ch. sh/stl lift 1.5m ld 750kg
Item no: 1080162 201

Online price:

Available for immediate delivery

Application
For pulling, lifting and clamping by means of a hand lever.

Execution
  • Made from sheet steel in a compact design
  • With high-strength, zinc-plated round steel chain
  • Smooth free-chaining feature
  • Little effort required on the hand lever
  • Automatic threaded mechanical brake
  • Hand wheel for fast passage of the unloaded chain
  • Dustproof, closed housing
  • Standard lift 1.5 m
  • 1 load-bearing chain strand

Notes
All models are also available in explosion-protected design. Further multi-purpose lever hoist devices, 6 t and 10 t load capacity, deliverable on request.

Brand: YALE
Nominal chain thickness: 18 mm
Stroke force at nominal load: 20 daN
Stroke height per lever revolution: 20 mm
Chain diameter: 6 mm
Load-carrying capacity: 750 kg
Min. hook spacing: 340 mm
Length of lever: 250 mm
Lift height: 1500 mm
Number of load chains: 1 PCS
Weight: 6,3 kg
EN standard: 12195-1

Manufacturer part no.: 192049841

EAN no.: 4053981988719

Product Datasheet
