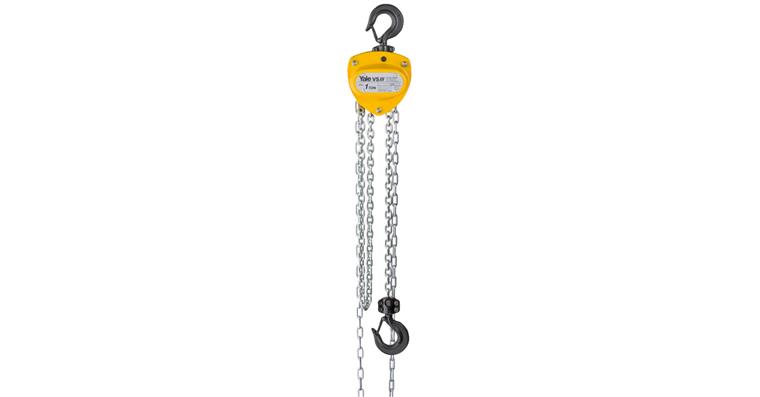

Cylinder gear block + tackle, ld cap. 3000kg, lift frce at nom. ld 37daN, d/str.

Cylinder gear block + tackle, ld cap. 3000kg, lift frce at nom. ld 37daN, d/str.

Cylinder gear block + tackle, ld cap. 3000kg, lift frce at nom. ld 37daN, d/str.
Item no: 1080128 410

Online price:

Availability on demand

Execution
  • End-to-end stud bolts between the side panels and cover mounting, as well as the reinforced hand-wheel cover, provide increased stability
  • Precision-machined guide rollers allow for optimum running of the load chain
  • Ball bearings and needle bearings in the gear, in the side panels and in the load chain wheel guarantee durability and ease of maintenance
  • Zinc-plated and yellow chromated brake parts and chain guide rollers ensure increased corrosion protection
  • The standard zinc-plated load chain provides additional corrosion protection

Notes
Overload protection and chain storage available as an option. Higher load capacities up to 50 t deliverable on request.

Brand: YALE
Load-carrying capacity: 3000 kg
Nominal chain thickness: 24 mm
Chain diameter: 8 mm
Stroke force at nominal load: 37 daN
Lift height every 1 m hand chain is uncoiled: 10 mm
Lift height: 3000 mm
Min. hook spacing: 580 mm
Number of load chains: 2 PCS
Weight: 27 kg
EN standard: 818-7

Manufacturer part no.: N04200129

EAN no.: 4025092949965

Product Datasheet
