Balancer, cable extension 1600 mm, cable dia. 3 mm, load capacity 3.8-5.2 kg

Balancer, cable extension 1600 mm, cable dia. 3 mm, load capacity 3.8-5.2 kg

Balancer, cable extension 1600 mm, cable dia. 3 mm, load capacity 3.8-5.2 kg
Item no: 1080103 104

Online price:

Available in 4-6 working days.

Execution
  • Housing made of extremely impact-resistant special plastic
  • High-strength and hooped special motive spring
  • Cable, diameter 3 mm, can be replaced very easily
  • Cable extension: Infinitely adjustable
  • Cable feed limitation is impact absorbing and adjustable
  • Cable drum is made from wear-resistant plastic
  • Lockable cable drum
  • Push clamp for securing the cable end
  • Suspension via a freely turning and swivelling safety snap hook

Advantage
  • Infinitely variable load setting via an adjusting screw with over-twist safeguard
  • Effortless work

Delivery
Fall arrester in accordance with DIN 15112 included in the scope of delivery


Brand: ---
Min. load-carrying capacity: 3,8 kg
Max. load-carrying capacity: 5,2 kg
With automatic locking: No
Max. cable pull-out length: 1600 mm
Adjustable cord length: Yes
Material of cord: Steel
Wire cable diameter: 3 mm
Replaceable cord: Yes
Cord in-feed restriction: Absorbs impacts, adjustable
Material of cable drum: Highly abrasion-proof plastic
Suspension type: Freely rotating and pivot screw karabiner hook
Load attachment: Screw Karabiner hook
Material of housing: Plastic
Housing height: 71 mm
Housing width: 141 mm
Colour of housing: Black
Height: 460 mm
Spring design: Riveted special mainspring
With overrotation protection: No
Spring breakage protection: Yes
Number of springs: 1 PCS
DIN: 15112

Versions
loading
Keywords: Federzug , Balancer , Federzüge , Gewichtsausgleicher , AUTOSTAT

You might also be interested in this

  • Wall-mounted belt screw on red/white belt width 50 mm belt length 4 m
    202,56 €
  • Hazmat cabinet HxWxD 1000x500x500 mm 2 trays each 10 litres RAL 7035/5012
  •
    Wall-mounted belt screw on red/white belt width 50 mm belt length 3 m
    166,37 €
  • Hard stone measuring and control plate DIN 876/1 diamond-lapped 2000x1000x220 mm
  •
    Slabbing cut drill reamer HSS-E+TiN size 3 for bore dia. 16–30.5 mm
  •

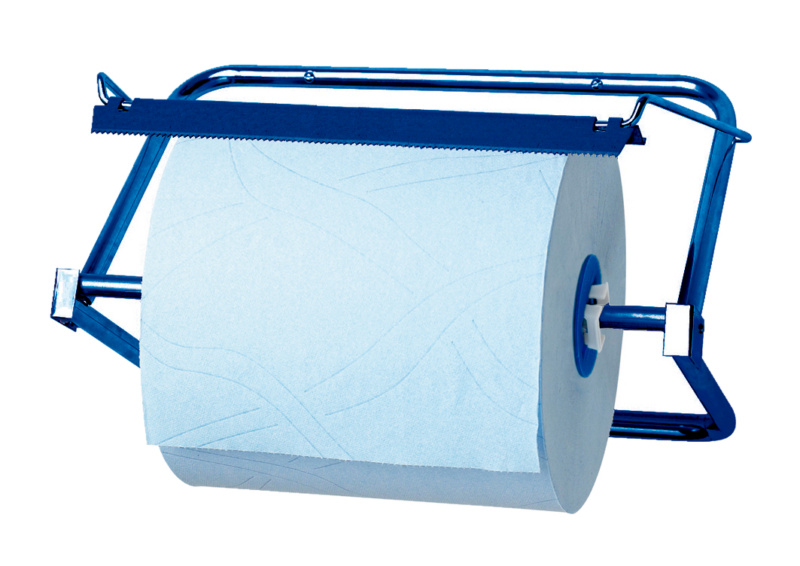

    Wall holder for cleaning cloth rolls up to 40 cm wide WxHxD 500x312x23 mm
  •
