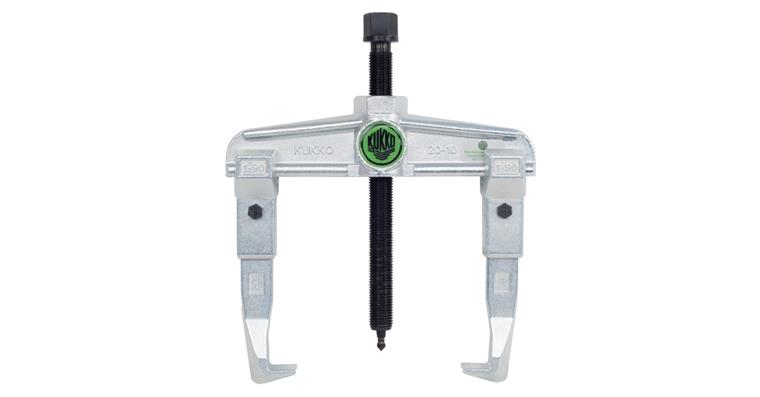

Twin leg puller, size 4, clamping width 520 mm, clamping depth 200 mm

Twin leg puller, size 4, clamping width 520 mm, clamping depth 200 mm

Twin leg puller, size 4, clamping width 520 mm, clamping depth 200 mm
Item no: 1078105 107

Online price:

Available in 13-15 working days.

Application
For universal internal and external extraction of gear wheels, ball bearings, bearings etc.

Execution
  • Strong design, special steel
  • Strong spindle and movable spindle tip
  • Spindle head with collar (anti-slip protection)
  • Sliding, permanently parallel legs and large contact surfaces for gentle extraction
  • Fixed hook fastening when the screws are tightened

Advantage
  • Bar with hexagonal socket for tightening
  • Can be used as either an external or internal extractor


Brand: KUKKO
Extractor design: Fixed hook fastening
Max. external clamping width: 520 mm
Max. internal clamping width: 590 mm
Max. clamping depth: 200 mm
Min./max. external clamping width: 80-520 mm
Min./max. internal clamping width: 200-590 mm
Size: 4

Manufacturer part no.: 009761

EAN no.: 4021176009761

Product Datasheet
Additional articles

Please select a button.

Spare Parts
Versions
loading
Keywords:

[Text nicht gefunden]

  • ATORN centre drill bit HSS shape A left 6.3 mm x 16 mm x 71 mm
  •
    ATORN test pin RSB TC1 12.52 mm x 70 mm
  •
    ATORN twist drill N HSS, steam-treated, DIN 338, 3.0 mm x 61 mm x 33 mm, 118°
    1,80 €

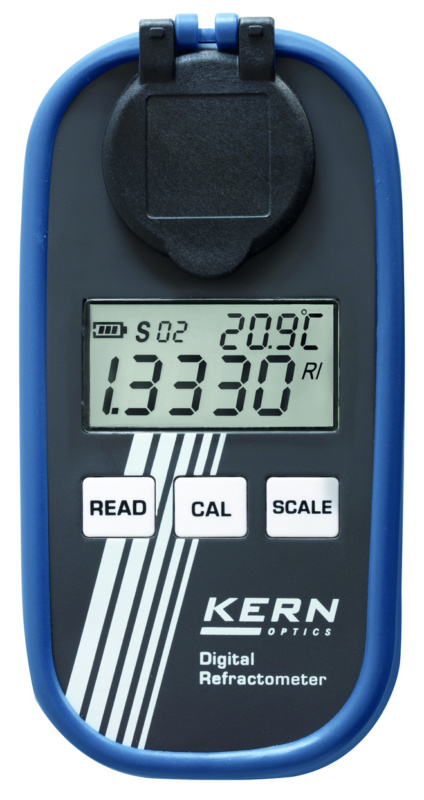

  • Digital refractometer type ORM 50BM, measuring range 0-50 %
  •

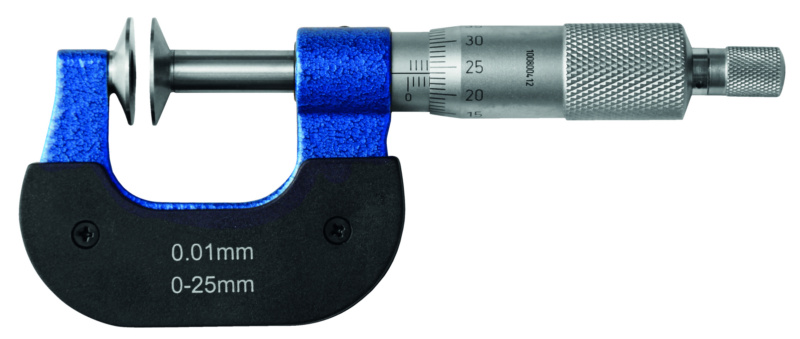

    Micrometer with disc measuring surfaces 75-100 mm measuring surfaces dia. 20 mm
  •
    Micrometer with disc measuring surfaces 125-150mm measuring surfaces dia. 20 mm
  •

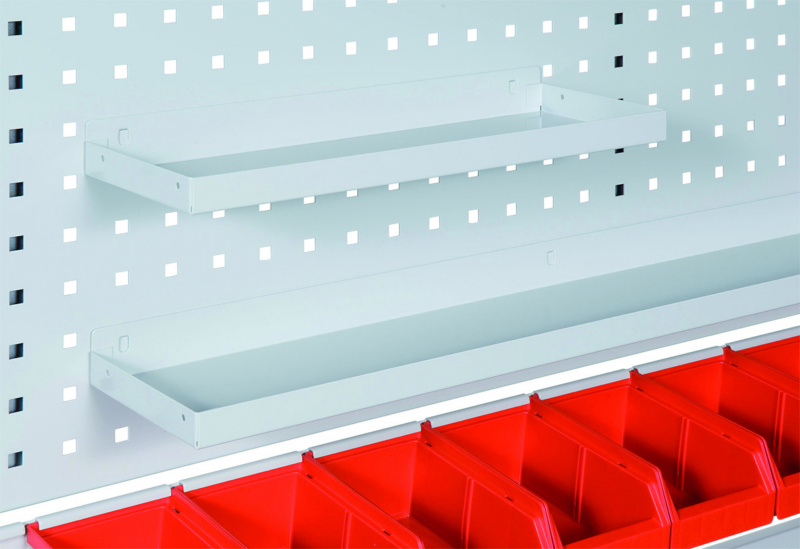

    Shelf W400XD145mm RAL7035
  •
