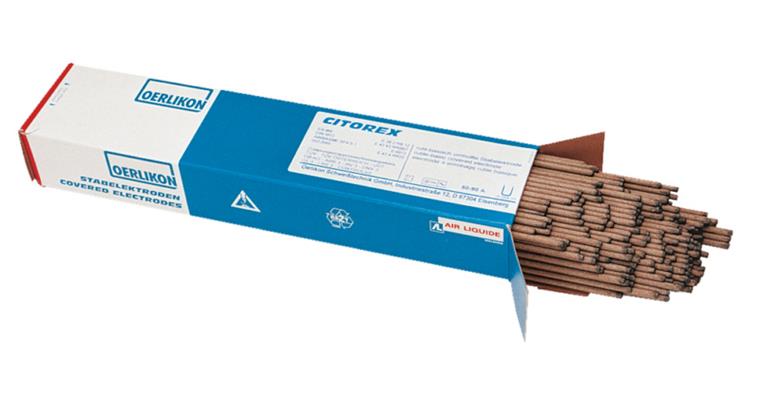

Welding electrode CITOREX rutile basic-coated 3.2x350 mm 100–150 A 125 pieces

Welding electrode CITOREX rutile basic-coated 3.2x350 mm 100–150 A 125 pieces

Welding electrode CITOREX rutile basic-coated 3.2x350 mm 100–150 A 125 pieces
Item no: 1070710 102

Online price:

Available in 8-10 working days.

Application
For unalloyed structural steels St 33 to St 52-3, boiler plates H I, H II, 17 Mn 4, tube steels to St 52.4, St 35.8 to 17 Mn 4, StE 210.7 to StE 385.7 and the relevant TM grades, grain-refined steels WStE 255 to WStE 380, shipbuilding steels A, B. D, E, cast steel GS-38 to GS-52.

Execution
  • EN 499, DIN 1913, E 38 2 RB 12, E 43 43 RR (B) 7, AWS/ASME SFA-5.1, E 6013
  • Rutile basic-coated
  • Welding electrode, particularly suitable for welding tube roots and positional welding in pipeline, boiler and container construction
  • Well-suited for bath safety during submerged arc welding
  • Particularly suitable for subsequent zinc-plating or enamelling due to low Si content

Notes
Approved in accordance with TÜV, DB, ABS, BV, DNV, GL, LRS, Controlas.

Brand: OERLIKON
Type: CITOREX
Diameter: 3,2 mm
Length: 350 mm
Min./max. current: 100-150 A
Diameter x length: 3.2 x 350 mm
Max. current: 150 A
Min. current: 100 A

Manufacturer part no.: CITOREX 3,2X350

Product Datasheet
