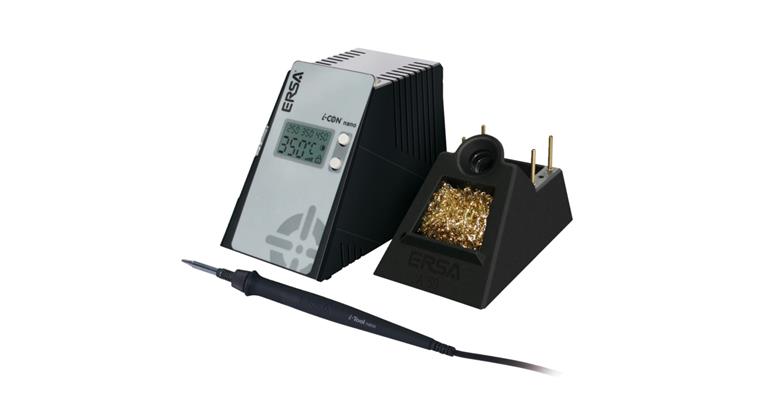

Electrical soldering station i-CON nano, heating capacity 80 W, temp. 150–450°

Electrical soldering station i-CON nano, heating capacity 80 W, temp. 150–450°

Electrical soldering station i-CON nano, heating capacity 80 W, temp. 150–450°
Item no: 1070055 101

Online price:

Available in 6-8 working days.

Application
For professional soldering tasks in the most confined spaces.

Execution
  • Voltage 220-240 V, 50/60 Hz
  • Interference-suppressed
  • Anti-static
  • 24 V secondary voltage
  • Temperature range 150-450°C, adjustable

Advantage
Simple operating concept: variable adjustment of the working temperature and determination of the standby time and calibration value

Delivery
Soldering station, soldering iron i-Tool nano, stand


Brand: KURTZ ERSA
Tip diameter: 1,6 mm
Type: i-CON nano
Min. temperature conditions: 150 °C
Max. temperature conditions: 450 °C
Heat-up time: 9 s
Shape of tip: Chisel-shaped
Power rating: 68 W
Type description: 0102 CDLF 16
Min./max. temperature conditions: 150 to 450 °C

Manufacturer part no.: 0IC1200A

EAN no.: 4003008088076

Product Datasheet
