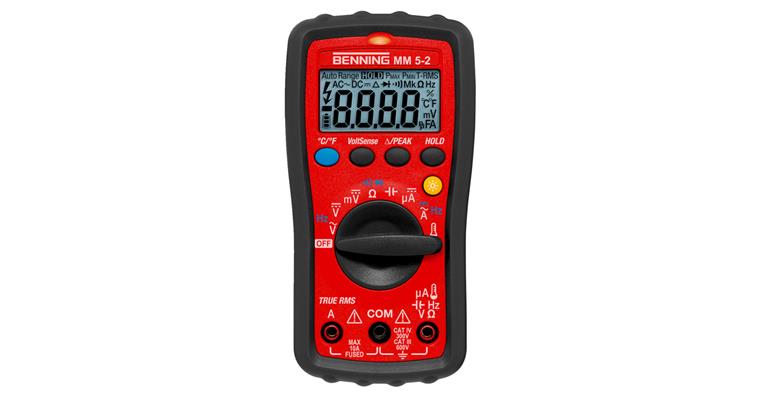

MM 5-2 digital multimeter with volt sensor accuracy 0.5 %, display range 6,000

MM 5-2 digital multimeter with volt sensor accuracy 0.5 %, display range 6,000

MM 5-2 digital multimeter with volt sensor accuracy 0.5 %, display range 6,000
Item no: 1062395 106

Online price:

Still in stock: 5

Application
For use in industry, service and trade

Execution
  • With automatic and/or manual range selection
  • Automatic switch-off
  • Battery low voltage display
  • Continuity test via red LED and buzzer
    • TRUE RMS measurement procedure

    • Volt sensor for non-contact detection of phase voltage and cable breaks (visual signal)

    • Relative measurement (REL)

Delivery
Protective rubber frame, batteries, measuring leads, wire temperature sensor, bag

Notes
For replacement batteries, see art. no. 1039900 304.

Brand: BENNING
Display range: 6000 digits
Measuring accuracy: +/- 0.5 %
Min./max. test voltage (DC): 0.1 mV/DC-600 V/DC
Min./max. test voltage (AC): 0.1 mV/AC-600 V/AC
Min./max. alternating current of measuring range: 1 mA-10 A
Min./max. direct current of measuring range: 0.1 µA-10 A
Continuity testing: Yes
Diode testing: Yes
Min./max. electrical-resistance measuring range: 0.1 Ohm-40 MOhm
Min./max. frequency: 0.00001 / 50 kHz
Min./max. temperature measuring range: -40 to 400 °C
Volt sensor: Yes
Measuring procedure: TRUE RMS
Overvoltage protection category: CAT III/600 V
Length x width x height: 150 x 77 x 44 mm
Display: LCD
EN standard: 61010
Height: 44 mm
Length: 150 mm
Max. direct current of measuring range: 10 A
Max. frequency: 50 kHz
Min. direct current of measuring range: 0,1 µA
Min. frequency: 0,01 Hz
Width: 77 mm
Max. alternating current of measuring range: 10 A
Max. alternating voltage of measuring range: 600 V/AC
Max. capacitor capacity: 1 mF
Max. temperature conditions: 400 °C
Max. test voltage (AC): 600 V/AC
Max. test voltage (DC): 600 V/DC
Min. alternating current of measuring range: 1 mA
Min. alternating voltage of measuring range: 100 µV/AC
Min. capacitor capacity: 0,01 nF
Min. temperature conditions: -40 °C
Min. test voltage (AC): 0,1 mV/AC
Min. test voltage (DC): 0,1 mV/DC
Min./max. alternating voltage of measuring range: 100-600 V/AC

Manufacturer part no.: 044071

EAN no.: 4014651440715

Product Datasheet
