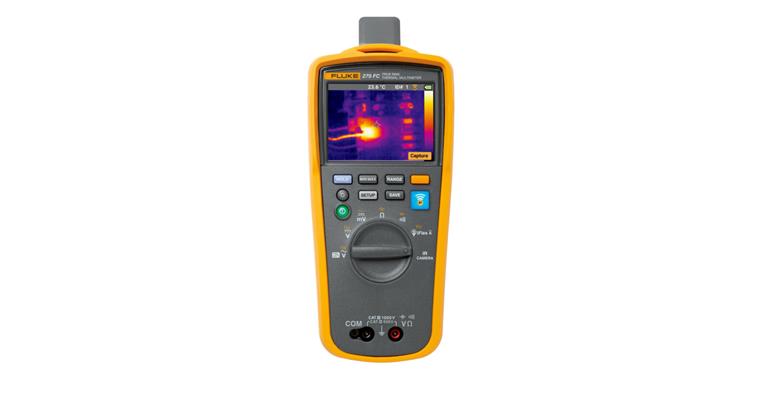

279 FC digital multimeter with infrared camera and iFlex® current clamp

279 FC digital multimeter with infrared camera and iFlex® current clamp

279 FC digital multimeter with infrared camera and iFlex® current clamp
Item no: 1062383 101

Online price:

Available in 6-8 working days.

Application
Thermography for fast and reliable detection of many electrical problems, reduces the need for numerous time-consuming measurements and inspections.

Execution
  • Fully equipped multimeter with integrated thermal imaging camera
  • 15 measurement functions, including: AC voltage with low-pass filter, DC voltage, resistance, continuity, capacitance, diode test, min/max/average value, AC current (with iFlex®) and frequency
  • Thermal resolution: 80 x 60 pixels
  • Colour LCD, 8.9 cm/3.5 inch diagonal
  • Under normal conditions, the lithium-ion battery lasts for a full working day (over 10 hours)
  • Automatic switch-off to extend operating time
  • Overvoltage categories CAT III 1,000 V/CAT IV 600 V

Advantage
  • Two measuring devices in one to increase productivity. You no longer have to go back to the vehicle or office to return a borrowed camera or to wait for a thermography expert
  • The measuring instrument is designed for durability, can survive a drop from a height of 3 m and is fitted with a rubber holster for enhanced device protection
  • Provided that the transmission is not restricted by obstacles, you can transfer measured values and thermal images wirelessly to a smartphone from a distance of up to 6 m

Delivery
279 FC true RMS thermal imaging multimeter
Flexible iFlex® current clamp
TL175 measuring leads
Lithium-ion rechargeable battery with charger
Padded carry bag
Magnetic holder

Notes
The built-in Fluke Connect™ function allows you to transfer results wirelessly to your smartphone, which saves time when completing work reports.

Brand: FLUKE
Display range: 0 - not applicable
Min./max. test voltage (DC): 0 V-1000 V/DC
Min./max. test voltage (AC): 0 V/AC-1000 V/AC
Min./max. alternating current of measuring range: 0 A-2500 A
Continuity testing: Yes
Diode testing: Yes
Min./max. electrical-resistance measuring range: 0 Ohm-50 MOhm
Min./max. frequency: 0 / 100 kHz
Min./max. temperature measuring range: -10 to 200 °C
Overvoltage protection category: CAT III/1000 V | CAT IV/600 V
Length x width x height: 216 x 94 x 57 mm
Display: LCD, colour
EN standard: 61010-2-033 | 61010-1 (VDE 0411-1)
Height: 57 mm
Length: 216 mm
Max. frequency: 100 kHz
Min. frequency: 0 Hz
Width: 94 mm
Max. alternating current of measuring range: 2500 A
Max. capacitor capacity: 9999 µF
Max. temperature conditions: 50 °C
Max. test voltage (AC): 1000 V/AC
Max. test voltage (DC): 1000 V/DC
Min. alternating current of measuring range: 0 A
Min. capacitor capacity: 1 nF
Min. temperature conditions: -10 °C
Min. test voltage (AC): 0 V/AC
Min. test voltage (DC): 0 V
Number of rechargeable batteries/batteries: 1 PCS

Manufacturer part no.: 4684050

EAN no.: 0095969794466

Product Datasheet
