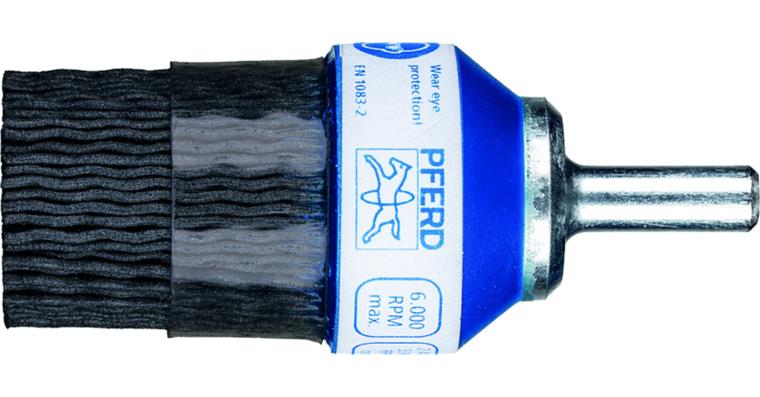

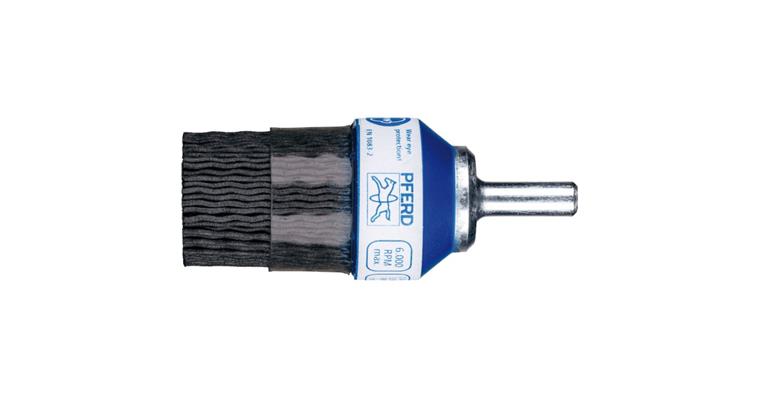

Brush CER diameter 38 mm, shank 6 mm, PBUPR 3838/6 CO G120 1.10

Brush CER diameter 38 mm, shank 6 mm, PBUPR 3838/6 CO G120 1.10

Brush CER diameter 38 mm, shank 6 mm, PBUPR 3838/6 CO G120 1.10
Item no: 1047802 102

Online price:

Available in 6-8 working days.

Application
Particularly suitable for deburring and for surface machining on stationary machines. For particularly aggressive use and a high workpiece surface quality.

Execution
  • Machinable materials: Aluminium, bronze, cast iron, highly heat-resistant materials, cobalt-based alloys, hard non-ferrous metals, nickel-based alloys (e.g. Inconell and Hasteloy), steel, cast steel, nickel- or titanium-based superalloys, titanium, titanium alloys, other non-ferrous metals, soft titanium alloys
    (tensile strength 500 N/mm²)
  • Machining tasks: Deburring, cleaning, texturing (matting, matt-finishing and burnishing)
  • Brushes with ceramic grain (CO) are known for being extremely tough with excellent cutting ability
  • For achieving a high material removal rate and aggressive brushing action
  • The plastic filament can withstand temperatures of up to 220 °C
  • Drive types: Flexible shaft drives, drills, straight grinders, robots, stationary machines, machine tools

Delivery
This brush is supplied with a support ring.


Brand: PFERD
Head diameter: 38 mm
Shank diameter: 6 mm
Length: 77 mm
Wire diameter: 1,1 mm
Max. rotation speed: 5000 rpm
Material of edging: Ceramic grain
Design: Corrugated
Type: PBUPR 3838/6 CO 120 1.10
Filling length: 38 mm
Material to be processed: Aluminium | Bronze | Cast iron | Non-ferrous metal | Steel | Cast steel | Titanium | Titanium alloy
Max. recommended rotation speed: 3200 rpm
Min. recommended rotation speed: 2000 rpm
Min./max. recommended rotation speed: 2000-3200 U/min(rpm)

Manufacturer part no.: 43214112

EAN no.: 4007220104729

Product Datasheet
