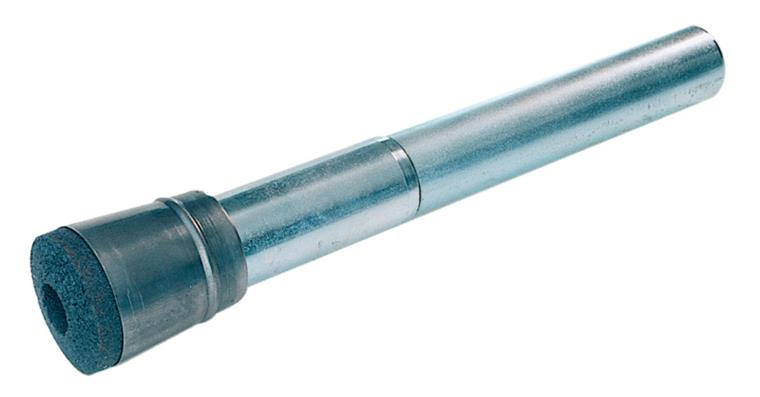

Sanding disc dressing tool, silicon carbide, size 1, dia. 55 mm

Sanding disc dressing tool, silicon carbide, size 1, dia. 55 mm

Sanding disc dressing tool, silicon carbide, size 1, dia. 55 mm
Item no: 1046210 103

Online price:

Still in stock: 6

Application
For precise turning, shaping and sharpening of even the smallest, thinnest-walled sanding discs with edge thicknesses for peripheral edge and face from 0.5 mm without chipping of the edges.

Execution
  • Rotating silicon carbide dresser rotator
  • On ball bearings
  • Replaceable
  • Art. no. 1046210 101, size 00: Discs up to approx. 100 mm Ø, small sanding block, mounted points
  • Art. no. 1046210 102, size 0, with fracture guard sleeve: Tool sanding discs up to approx. 200 mm Ø
  • Art. no. 1046210 103, size 1, with fracture guard sleeve: Tool sanding discs up to approx. 250 mm Ø, profile sanding discs up to approx. 300 mm Ø

Advantage
Dressing action superior to that of diamonds.

Notes
The prescribed profile angle of the rotator must be maintained.
For replacement rotator, see art. nos. 1046211 101-103.

Brand: ---
Size: 1
Handle length: 230 mm
Handle diameter: 30 mm
Roll diameter: 55 mm
Material of abrasive medium: Ceramic grain
Material of handle: Steel
Suitable for max. sanding disc diameter: 230 mm
Suitable for min. sanding disc diameter: 100 mm
Suitable for min./max. sanding disc diameter: 100-230 mm

EAN no.: 4024496091799

Product Datasheet
