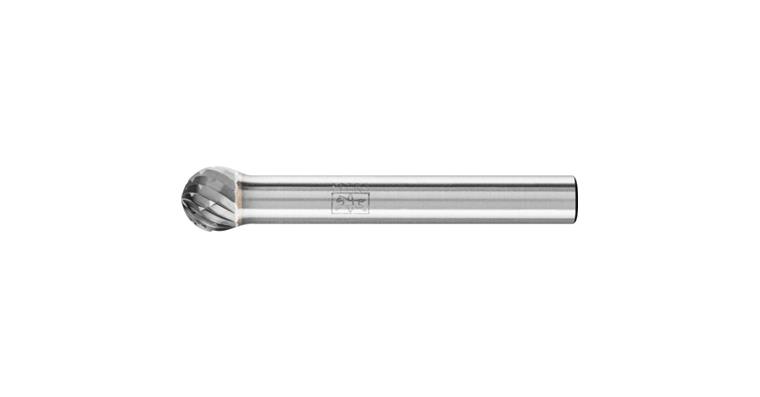

TC bur spherical (KUD), shank dia. 6mm, serration 3 plus, head dia.xlength 8x7mm

TC bur spherical (KUD), shank dia. 6mm, serration 3 plus, head dia.xlength 8x7mm

TC bur spherical (KUD), shank dia. 6mm, serration 3 plus, head dia.xlength 8x7mm
Item no: 1044257 106

Online price:

Available in 6-8 working days.

Application
The high profile accuracy of the carbide burs enables use on robots and repeat re-grinding.

Execution
  • DIN 8032
  • With chip breaker

Advantage
  • The precise concentricity of the PFERD carbide burs:
  • Protects the health of the person during the working process
  • Reduces wear on the drive machine
  • Enables impact-free working
  • Prevents chatter marks

Notes
Other sizes and serrations and carbide burs with special shaft shapes and lengths as well as special serrations deliverable on request.

Brand: PFERD
Material to be processed: Highly heat-resistant alloys | Nickel | Stainless steel | Cast iron | Grey cast iron | Malleable cast iron | Steel | Cast steel | Hardened steel | Case hardening steel | Tool steel
Serration type: 3 PLUS
Form: Ball shape
Head diameter: 8 mm
Head diameter x cutting edge length: 8 x 7 mm
Shank diameter: 6 mm
Cutting edge length: 7 mm
Cutting edge diameter: 8 mm
Cutting edge diameter x cutting edge length: 8 x 7 mm
Cutting material: Carbide
Length: 47 mm

Manufacturer part no.: KUD 0807/6 Z3 PLUS

EAN no.: 4007220046883

Product Datasheet
