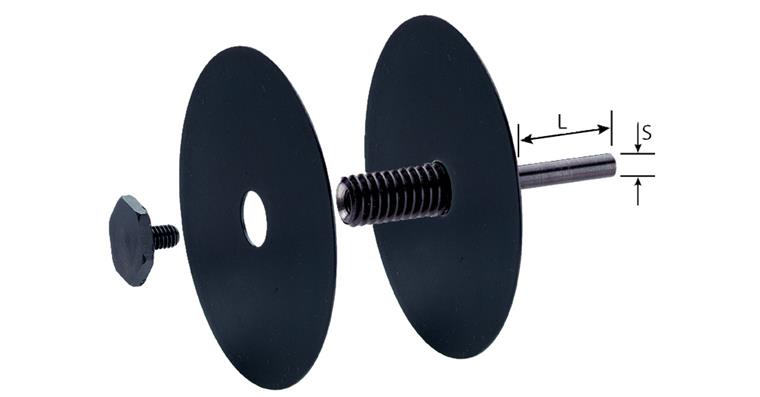

Tool holder POLIVLIES® discs SxL 6x35 mm clamping range 1-25 mm hole dia. 13 mm

Tool holder POLIVLIES® discs SxL 6x35 mm clamping range 1-25 mm hole dia. 13 mm

Tool holder POLIVLIES® discs SxL 6x35 mm clamping range 1-25 mm hole dia. 13 mm
Item no: 1043192 201

Online price:

Available in 6-8 working days.

Application
For POLIVLIES® discs, art. nos. 1043192 101-102.

Execution
  • Clamping width is preset using the hexagon nut on the shaft side of the tool holder
  • Up to 3 POLIVLIES® discs can be clamped
  • In order to vary the lateral flexibility, a pair of side discs with dia. 50 mm and a pair with dia. 80 mm are supplied
  • The tool is changed from the front by loosening the fastening screw

Advantage
It is not necessary to remove the tool holder from the drive machine to change tools


Brand: PFERD
Bore diameter: 13 mm
Max. clamping range: 25 mm
Min. clamping range: 1 mm
Min./max. clamping range: 1-25 mm
Number of pieces per packet: 1 PCS

Manufacturer part no.: 23600506

EAN no.: 4007220505878

Product Datasheet
