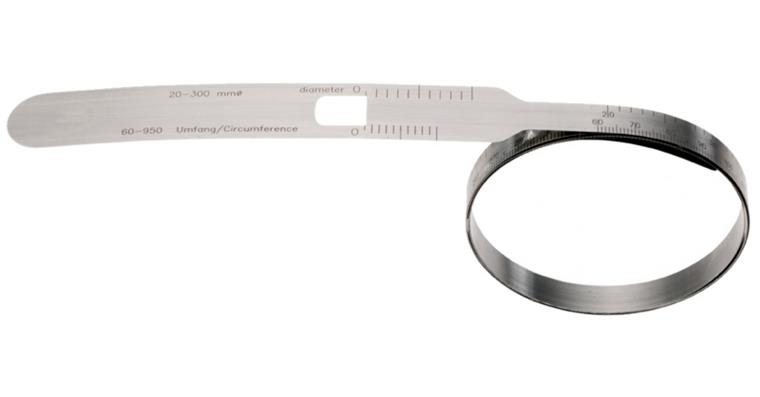

Tape rule spring steel millimetre scale f. circumference 60-950mm/dia. 20-300mm

Tape rule spring steel millimetre scale f. circumference 60-950mm/dia. 20-300mm

Tape rule spring steel millimetre scale f. circumference 60-950mm/dia. 20-300mm
Item no: 1039580 101

Online price:

Still in stock: 4

Application
For simultaneous measurement of the circumference and diameter of all round elements, e.g. gravure cylinders.

Execution
  • Millimetre scale
  • Cover plate with vernier scale reading 0.1 mm
  • Accuracy according to factory standard
  • Laser-divided graduation
  • Spring steel, with etched graduation

Notes
Larger diameter and rustproof version deliverable on request.

Brand: LIZZARD
Min./max. circumference of measuring range: 60-950 mm
Min./max. diameter of measuring range: 20-300 mm
Scale value: 0,1 mm
Width of band: 10 mm
Display: Analogue
Max. circumference of measuring range: 950 mm
Max. diameter of measuring range: 300 mm
Min. circumference of measuring range: 60 mm
Min. diameter of measuring range: 20 mm
Vernier scale: 0.1 mm

EAN no.: 4024496086016

Product Datasheet
