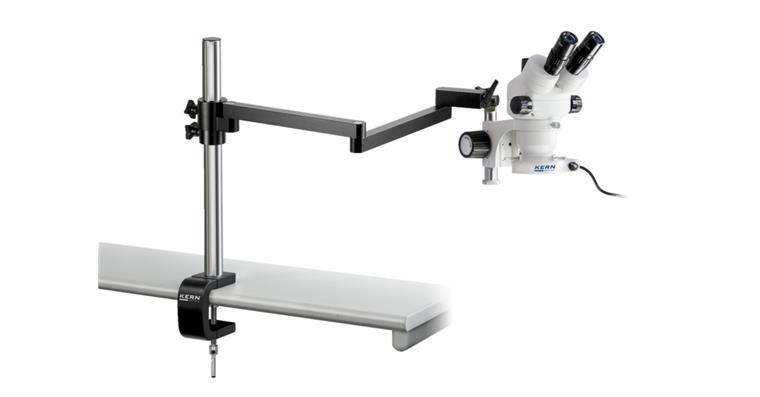

Stereo microscope OZM 953 0.7x-4.5x trinocular tube eyepiece HSWF 10x/dia. 23 mm

Stereo microscope OZM 953 0.7x-4.5x trinocular tube eyepiece HSWF 10x/dia. 23 mm

Stereo microscope OZM 953 0.7x-4.5x trinocular tube eyepiece HSWF 10x/dia. 23 mm
Item no: 1039326 107

Online price:

Available in 8-9 working days.

Application
Vordefinierte Stereomikroskop-Sets mit PREMIUM-Universalständer und Beleuchtung für Ihren funktionalen Arbeitsplatz.

Execution
  • Pre-defined sets, consisting of
  • 1x stereo microscope head
  • 1x universal stand
  • 1x holder
  • 1x ring light
  • 1x dust cover
  • Holder with coarse drive
  • Adjustable rotational strength of the hand wheels

Advantage
Simple, practical and cost effective, saves time-consuming configuration work and being spoilt for choice when it comes to combining different components

Delivery
Stereomikroskopkopf
Universalständer
Halter
Ringbeleuchtung
Staubschutzhaube


Brand: KERN OPTICS
Eyepiece type: HSWF 10x/23
Type: OZM 953
Lens tube type: Trinocular
Stand design: Articulated arm stand with table clamp
Max. throat depth: 599 mm
Column diameter: 37 mm
Image capture: Optional, using external USB camera
Incident light: LED ring light
Light power: 4,5 W
Max. zoom enlargement: 4.5x
Min. zoom magnification: 0.7x
Transmitted light: LED
Zoom factor: 6.4 : 1
Field of view figure: 23

Manufacturer part no.: OZM 953

EAN no.: 4045761189058

Product Datasheet
