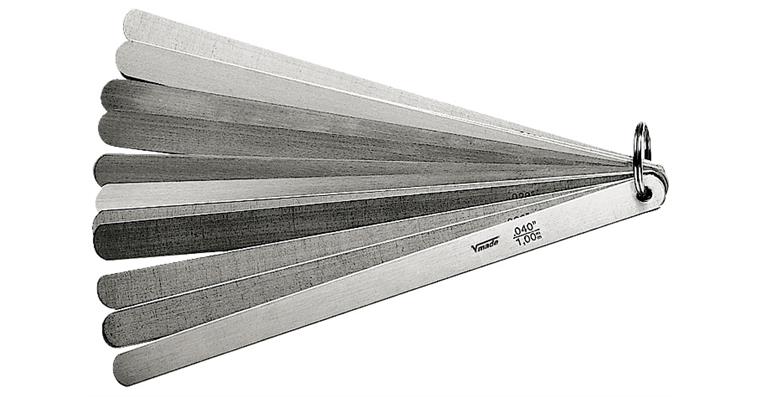

Feeler gauge spring steel cyl. on ring 20 blades L=200 mm 0.1-2 mm

Feeler gauge spring steel cyl. on ring 20 blades L=200 mm 0.1-2 mm

Feeler gauge spring steel cyl. on ring 20 blades L=200 mm 0.1-2 mm
Item no: 1037308 104

Online price:

Available for immediate delivery

Application
Suitable for inspecting gap dimensions and setting clearances.

Execution
  • Cylindrical blade shape
  • Loose, held together by a ring
  • Interchangeable
  • Dimensions in mm and inches on every gauge blade
  • Hardened spring steel
  • End no. 102: Increasing from 0.05-0.30 mm in increments of 0.05 mm and from 0.40-1.00 mm in increments of 0.10 mm
    End no. 103: Increasing from 0.05-1.00 mm in increments of 0.05 mm
    End no. 104: Increasing from 0.10-2.00 mm in increments of 0.10 mm
    End no. 105: Increasing from 0.05-0.30 mm in increments of 0.05 mm and from 0.40-1.00 mm in increments of 0.10 mm
    End no. 106: Increasing from 0.05-1.00 mm in increments of 0.05 mm


Brand: LIZZARD
Number of sheets: 20
Min./max. length of application area: 0.10-2.00 mm
Length: 200 mm
Nominal dimension in assortment: 0.1-2.0 mm, increasing by 0.1 mm
Width: 13 mm
Max. length of application area: 2,00 mm
Min. length of application area: 0,10 mm

EAN no.: 4024496084470
