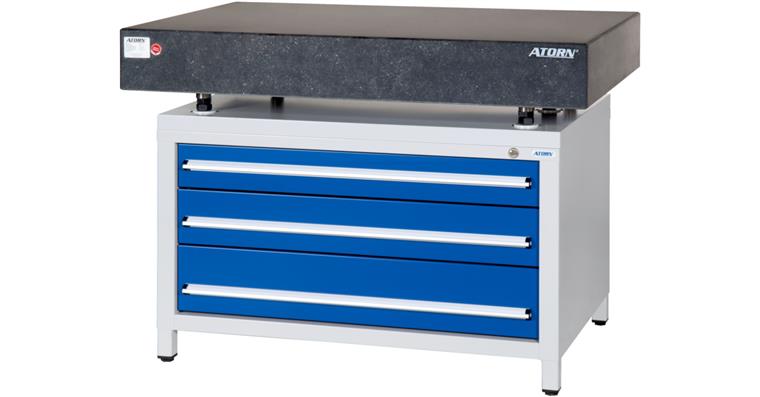

ATORN measuring and surface plate 1,200x800 mm accuracy 0 floor unit w/ drawers

ATORN measuring and surface plate 1,200x800 mm accuracy 0 floor unit w/ drawers

ATORN measuring and surface plate 1,200x800 mm accuracy 0 floor unit w/ drawers
Item no: 1036763 102

Online price:

Available in 16-18 working days.

Application
For use in production and measuring as a basis for precise measuring tasks, e.g. height measuring devices

Execution
  • High-strength hard stone with dense structure, fine pores and high level of homogeneity
  • Measuring surface with finest diamond-lapped finish
  • Outside edges finely ground
  • Edges chamfered for protection against damage
  • Processing and positioning is performed at specific points
  • Floor unit with 3 fully extending drawers
  • Load-bearing capacity per drawer approx. 100 kg
  • Drawer height 120, 150 and 240 mm

Advantage
  • Distortion-proof
  • Low thermal conductivity

Delivery
Traceable works calibration certificate. DAkkS calibration certificate deliverable on request.


Brand: ATORN
Accuracy class: 0
Length x width x thickness: 1200 x 800 x 160 mm
Weight: 640 kg
Flatness tolerance: 9 µm
Battery designation: 0 - not applicable

ATORN-No.: 32020002

EAN no.: 4050293345438

Product Datasheet
