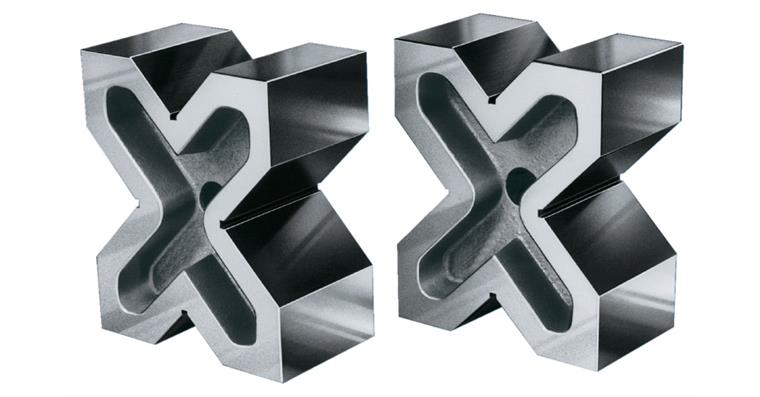

Quadruple prism parallel piece accuracy DIN876/1, 60x120x100 mm

Quadruple prism parallel piece accuracy DIN876/1, 60x120x100 mm

Quadruple prism parallel piece accuracy DIN876/1, 60x120x100 mm
Item no: 1036383 101

Online price:

Still in stock: 3

Application
For checking, marking off and aligning cylindrical parts.

Execution
  • In pairs
  • 4 grooves, approx. 90°
  • Parallelism deviation of V-grooves in comparison to base area max. 0.016 mm
  • Grade 1
  • Made of dense special cast iron with high wear resistance

Notes
Other accuracies deliverable on request.

Brand: LIZZARD
Length x width x height: 60 x 100 x 120 mm
Flatness tolerance: 0,016 mm
Min./max. workpiece diameter: 8-90 mm
Angle: 90 Degree
DIN: 876-1

EAN no.: 4024496236145
