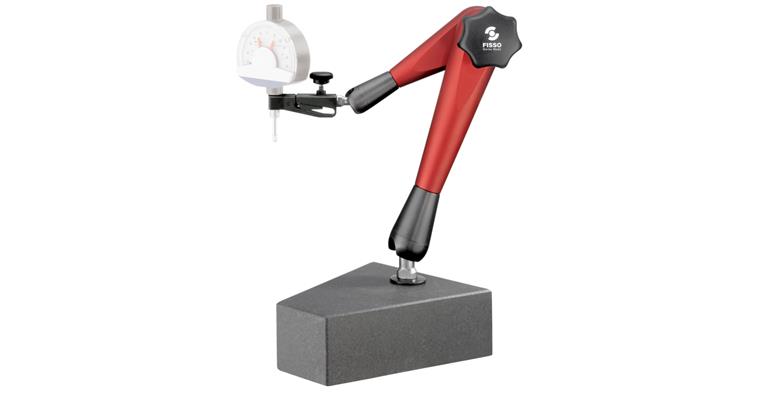

3D artic. meas. stand STRATO µ-LINE w. granite sldng base 150x120x50x50 H=438mm

3D artic. meas. stand STRATO µ-LINE w. granite sldng base 150x120x50x50 H=438mm

3D artic. meas. stand STRATO µ-LINE w. granite sldng base 150x120x50x50 H=438mm
Item no: 1034027 102

Online price:

Available in 6-8 working days.

Application
For clamping dial gauges, precision pointers, lever gauge probes etc.

Execution
  • With granite sliding base, face ground, bottom side ground hollow within 0.01 mm, with dust grooves
  • Incredibly simple precision fine adjustment with a high level of repeatability especially for measurements in the thousandth of a millimetre range
  • Kurzer Klemmweg für höchsten Bedienkomfort mit kraftvoller und dauerhafter Klemmung
  • Precisely positioned in no time at all
  • Powerful, constant clamping
  • Friction clamping based on a continuously variable, purely mechanical clamping system
  • Extension of the STRATO-LINE into the high-precision range
  • Short clamping path for optimum operating comfort
  • Central clamping handle for securing and releasing all 3 joints
  • Articulated stand fits precisely into the ball joint for a high level of stability
    • Pre-tension prevents unwanted collapse in the loosened state to protect the measuring instruments

    • Maintenance-free and durable system

    • Made of steel, no play, for exact positioning of the measuring instruments as well as high measuring accuracy and repeatability

    • Combined mount for dial gauges, electronic measuring probes with shank dia. 8 mm and level gauge probes with dovetail

    • Maximum precision ball joints made of steel

    • Red anodised arm parts made of high-quality light metal

    • Micro-fine adjustment made of steel

Advantage
  • FISSO articulated stands can be moved easily and precisely into any desired position
  • Zentralspanngriff zum Fixieren und Lösen aller 3 Gelenke
  • Wartungsfreies und dauerhaftes System
  • Präzisions-Feineinstellung mit hervorragendem Einstellkomfort und hoher Wiederholgenauigkeit speziell für Messungen im Tausendstel-Millimeterbereich

Delivery
In polystyrene or cardboard box, without dial gauge/lever gauge probe

Notes
For dial gauges and lever gauge probes (small probes) with dia. 8 mm shank or dovetail guide.

Brand: FISSO
Base size: 150 x 120 x 50 mm
Operation radius: 330 mm
Overall height: 438 mm
Material: Aluminium / plastic / steel
Base height: 50 mm
Base width: 120 mm
Foot length: 150 mm

Manufacturer part no.: AP33.20

EAN no.: 7640152571978
