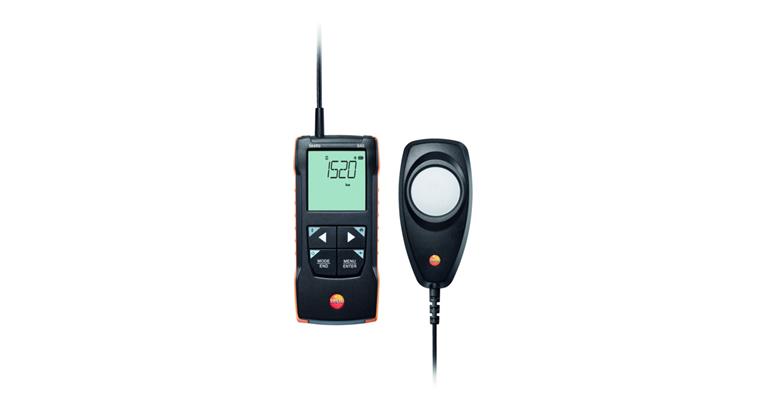

testo 545 digital illuminance measuring instrument with app connection

testo 545 digital illuminance measuring instrument with app connection

testo 545 digital illuminance measuring instrument with app connection
Item no: 1033947 301

Online price:

Available in 6-8 working days.

Application
For monitoring lighting conditions in workplaces, warehouses, industrial buildings and residential buildings.

Execution
  • Accuracy:
    • F1 = 6 % = V (Lambda) adaptation

    • F2 = 5 % = cos-compliant rating

    • Total ≤ 15 %

    • ±3 % of measured value ±1 digit
  • Resolution:
    • 0.1 lux (< 10,000 lux)

    • 1 lux (≥ 10,000 lux)
  • Simple, fast and precise measurement of illuminance (lux) for all common light sources based on v-Lambda curve
  • Wide range of applications thanks to LED compatibility (excluding single-colour blue LED)
  • Fast in-app configuration, graphic progression display, second screen and measurement data memory in the testo Smart app
  • Audible alarm when limit is exceeded

Delivery
testo 545 - lux measuring device with app connection and audible alarm
Transport pouch
Calibration log
Batteries (3x AA)


Brand: TESTO
Min./max. illumination of measuring range: 0-100000 lx
Min./max. working temperature: -10 to 50 °C
Max. illumination of measuring range: 100000 lx
Max. working temperature: 50 °C
Min. illumination of measuring range: 0 lx
Min. working temperature: -10 °C
Battery designation: 1.5 V Mignon AA
Cable length: 1,4 m
Height: 28 mm
IP protection class: IP 40
Length: 149 mm
Width: 60 mm

Manufacturer part no.: 0563 1545

EAN no.: 4029547025747

Product Datasheet
Keywords:

[Text nicht gefunden]

  • ATORN solid carbide drill UNI TiAlNplus 3xD with IC 10.0 mm straight shank HA
    92,33 €
  • ATORN solid carbide drill UNI TiAlNplus 5xD with IC 19.2 mm straight shank HA
  •
    HHW VDI HOLDER 69880 B8AK-30X20X40
  •

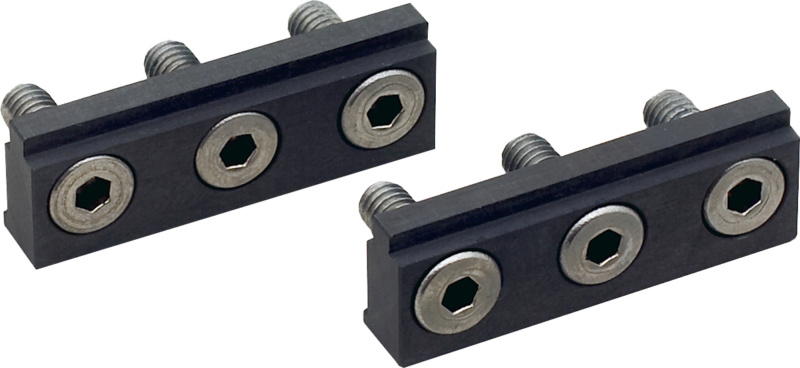

    ATORN clamping jaw set INOX size 1 for vice 47105700
  •
