Application

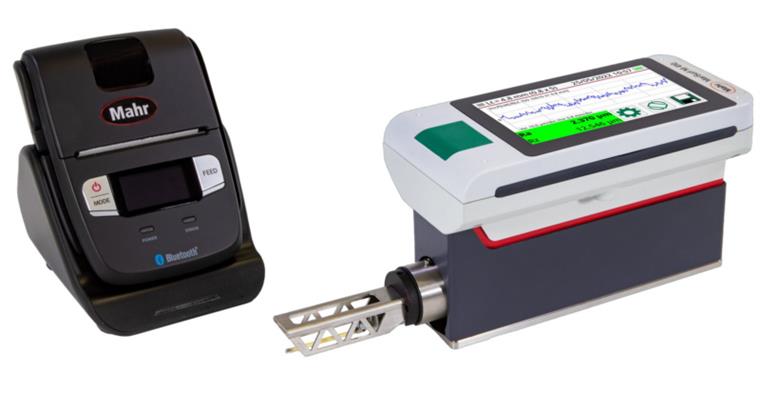

Surface measuring device with free scanning and automatic zero positioning for precise and standardised roughness and waviness measurements. The MarSurf M 410 has a practical touch display, an evaluation unit that can be removed from the drive unit, integrated PDF storage and wireless data transfer.

Execution

• Including Bluetooth® printer
• Parameters: Ra, Rq, Rz, Rz (JIS), Rz (Ry (JIS) corresponds to Rz), Rmax, Rp, Rp (ASME), Rpm (ASME), Rv, R3z, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, Rt, RPc, Rmr (tp (JIS, ASME) corresponds to Rmr), RSm, RS, Rdq, RSk, Rku, Rdc, RHtp, Pdc, Pa, Pt, PMr, Wa, Wq, WSm, WSk, Wt, CR, CF, CL, R, Ar, Rx, W, AW (MOTIF), Wx (MOTIF), Wte (MOTIF), NW (MOTIF), NR (MOTIF), NCRX (MOTIF), CPM (MOTIF)
• Inductive free tracer system
• Measuring range: 500 μm (±250 μm) for probe arm length 45 mm to 1,500 μm (±750 μm) for probe arm length 135 mm
• Filter according to ISO/JIS: Gaussian filter according to DIN EN ISO 16610-21, robust Gaussian filter according to
  DIN EN ISO 16610-31, special filter according to DIN EN ISO 13565-1, ls filter according to DIN EN ISO 3274 (can be switched off)
• Cut-off Ic according to ISO/JIS 0.08 mm, 0.25 mm, 0.8 mm, 2.5 mm, automatic filter detection, variable, reduced cut-off according to ISO/JIS can be selected
• Thanks to free tracers: Measurements of roughness as well as waviness - no extra measuring station required, determination of R, W and P factors
• Display and printout of MRK and ADK curve
• Simple alignment of the probe system: Menu-guided graphic instructions enable the incline to be corrected easily.

Advantage

• Magnetic probe mount: Fast probe arm change without tools
• PDF report creation directly in the unit without any additional software
• Probe arm management for mounting, changing and deleting more than 50 probe arms. The
  calibration data of a calibrated probe arm is retained
• Menu-guided inclination adjustment

Delivery
1x MarSurf M 410 operating unit
1x MD 26 drive unit
1x Bluetooth® printer
1x BFW A 10-45-2/90° standard probe arm, standardised
Docking station for operating unit
Probe protector
Built-in rechargeable battery
Charger
Mains power adapter
Height adjustment (integrated)
USB cable
Extension cable for drive unit (length 1.2 m)
Operating instructions

Notes
Further probe arms, e.g. for small bore holes and slots, available on request
