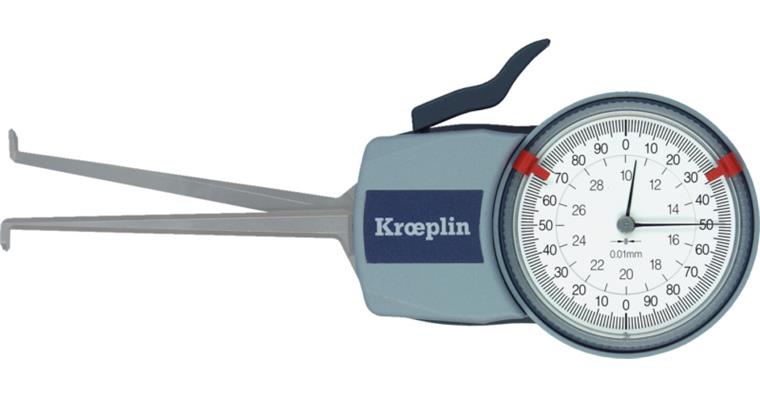

Internal quick probe with carbide ball dia. 1.0 mm H210 MR 10-30 mm

Internal quick probe with carbide ball dia. 1.0 mm H210 MR 10-30 mm

Internal quick probe with carbide ball dia. 1.0 mm H210 MR 10-30 mm
Item no: 1033449 203

Online price:

Available in 11-13 working days.

Application
For rugged use in workshops for groove and bore measurement.

Execution
  • Absolute measuring instrument with damped drive and steel thread transmission for greater precision and a longer service life
  • 50% higher display resolution compared to earlier generations
  • Reliable reproducibility of the display
  • Clear, easy-to-read scales and tolerance marks

Delivery
1x measuring gauge
1x cardboard box
Factory test certificate
Operating instructions


Brand: KROEPLIN
Calibration Group: Q
Min./max. length measuring range: 10.0-30.0 mm
Min./max. measurement force: 1.1-1.6 N
Measuring arrangement: 3
Measuring depth: 85 mm
Type: H210
Error limit: 0,01 mm
IP protection class: IP 65
Display: Analogue
Measuring contact length movable: 5,3 mm
Data transmission type: 0 - not applicable
Max. length measuring range: 30,0 mm
Min. length measuring range: 10,0 mm
Digit increment: 0,01 mm
Max. measurement force: 1,6 N
Min. measuring force: 1,1 N
Repetition limit: 0,01 mm

Manufacturer part no.: H210

Product Datasheet
