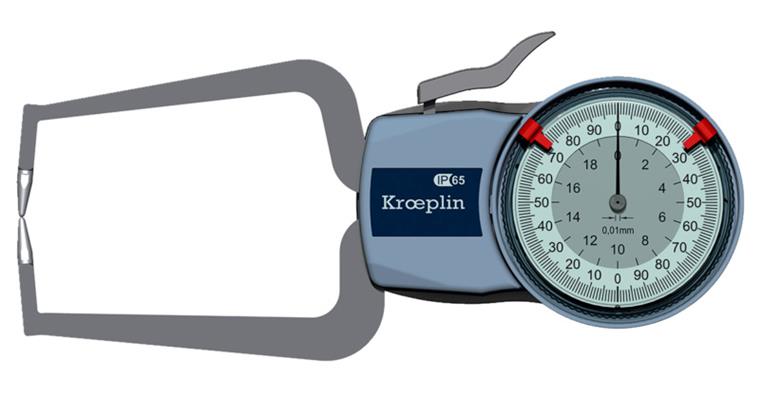

External quick probe with carbide ball dia. 1.5 mm D220 MR 0-20 mm

External quick probe with carbide ball dia. 1.5 mm D220 MR 0-20 mm

External quick probe with carbide ball dia. 1.5 mm D220 MR 0-20 mm
Item no: 1033435 201

Online price:

Still in stock: 1

Application
Applications
For rugged use in workshops for thickness and external measurement.

Execution
  • Absolute measuring instrument with damped drive and steel thread transmission for greater precision and a longer service life
  • 50 % higher display resolution compared to earlier generations
  • Reliable reproducibility of the display
  • Clear, easy-to-read scales and tolerance marks
  • Protected against dirt and dripping water

Delivery
1x measuring gauge
1x cardboard box
Factory test certificate
Operating instructions


Brand: KROEPLIN
Calibration Group: Q
Min./max. length measuring range: 0-20 mm
Min./max. measurement force: 1.1-1.6 N
Measuring arrangement: 11
Measuring depth: 85 mm
Type: D220
Error limit: 0,03 mm
IP protection class: IP 65
Display: Analogue
Measuring contact length movable: 24,7 mm
Measuring contact length fixed: 24,6 mm
Max. length measuring range: 20 mm
Min. length measuring range: 0 mm
Digit increment: 0,01 mm
Max. measurement force: 1,6 N
Min. measuring force: 1,1 N
Repetition limit: 0,01 mm

Manufacturer part no.: D220

Product Datasheet
