Lever gauge probe with large MR 1.6 mm reading 0.01 mm housing dia. 37.5 mm

Lever gauge probe with large MR 1.6 mm reading 0.01 mm housing dia. 37.5 mm

Lever gauge probe with large MR 1.6 mm reading 0.01 mm housing dia. 37.5 mm
Item no: 1033260 202

Online price:

Still in stock: 1

Application
For measuring deviations in concentricity, axial run-out, parallelism and flatness. For centring borehole shafts and aligning workpieces.

Execution
  • Housing with hardened dovetail fixtures bolted on
  • High sensitivity, low measuring force
  • Automatic switching of probing direction
  • Measuring mechanism on ruby bearings
  • Mounted using dovetail or shank with dia. 4 mm

Advantage
  • Indicator contact point with 12° contact angle (The INTERAPID 312 are designed so that the measured value will be correct with no need for adjustment at a contact angle α of 12° between the indicator contact point and workpiece surface. For any other contact angle, including where the indicator contact point is parallel to the workpiece surface, the measured values must be corrected)
  • Monté sur queue d'aronde ou tige Ø 4 mm

Delivery
1x dial test indicator
1x plunger with contact point made of hardened steel (2 mm diameter)
1x case


Brand: TESA TECHNOLOGY
Length measuring range: 1,6 mm
Type: Standardausführung
Scale value: 0,01 mm
Diameter: 37,5 mm
Length of measuring sensor from centre of ball: 16,5 mm
Measurement force: 0,12 N
Connection thread: M1.7
Data transmission type: 0 - not applicable
Material of measuring ball: Steel
Ball diameter: 2 mm
Pivot range of measuring sensor: 210 Degree
Calibration Group: L

Manufacturer part no.: 074111366

EAN no.: 7630041119138

Product Datasheet
Versions
loading
Keywords:

[Text nicht gefunden]

  • Lever gauge probe measuring range 1 mm probe length 44.5 mm basic set
  •
    Lever gauge probe MarTest 800 S reading 0.01 mm measuring range 0.4 mm
  •
    Lever gauge probe MarTest 800 SG reading 0.01 mm measuring range 0.4 mm
  •
    Lever gauge probe MarTest 800 SR reading 0.01 mm measuring range 0.8 mm
  •
    Lever gauge probe MarTest 800 H reading 0.01 mm measuring range +/- 0.4 mm
  •
    ATORN lever gauge probe, 0.001 mm scale 0.2 mm measuring range, 40 mm
  •
    Lever gauge probe with large MR 1.6 mm reading 0.01 mm housing dia. 30.0 mm
  •

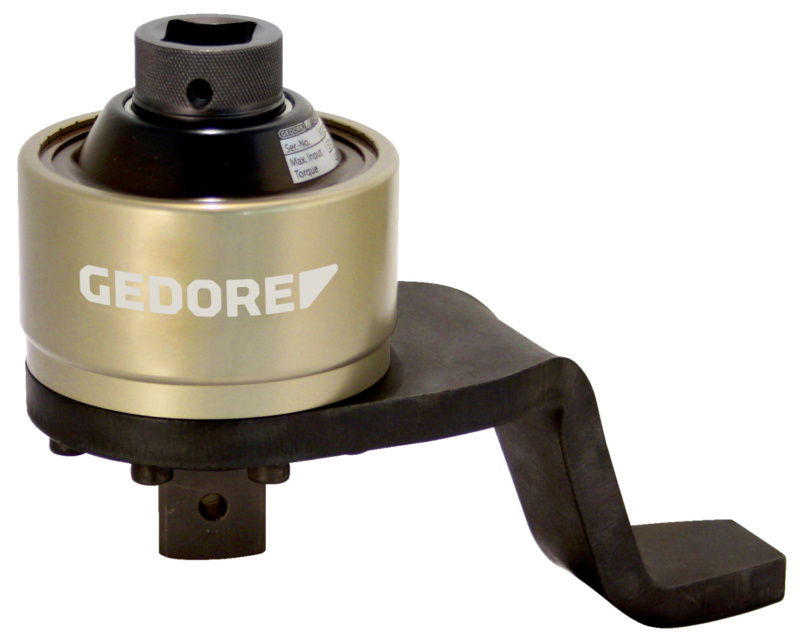

    GEDORE torque multiplier DREMOPLUS ALU DVI-28L 2800 Nm
  •
